Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

817.3503

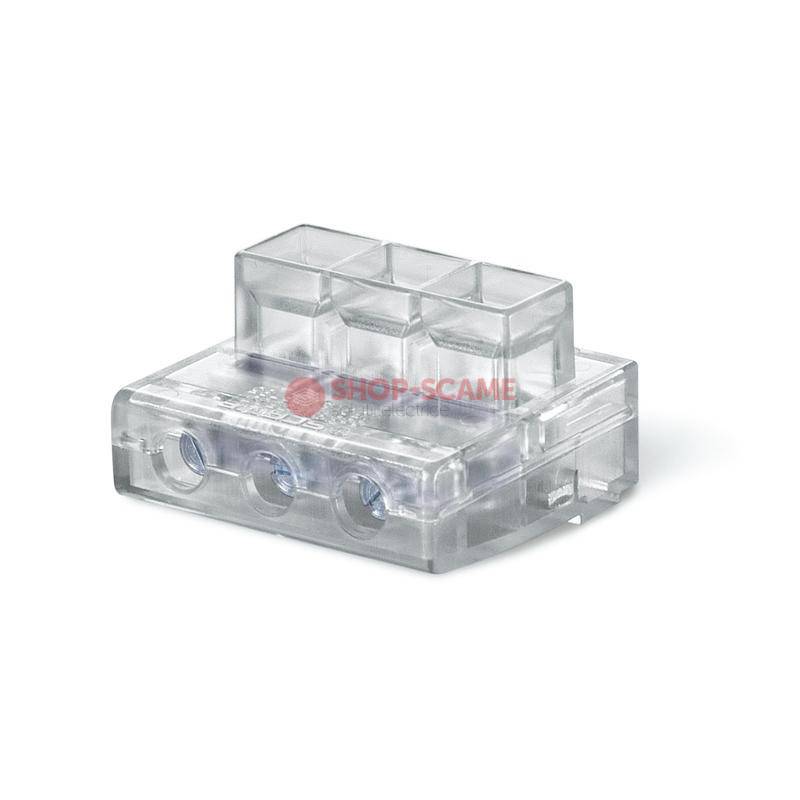

MULTI-WAY WIRE CONNECTOR 3x35mmq 450V AC SCAME 817.3503

Cod EAN: 8001636086767

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 41.98 Lei / 1

Pret cu TVA: 50.80 Lei / 1

«« Inapoi

Inainte »»

Master data
10NR Minimum order: 0.059KG Net Weight: 8001636086767 EAN code: 85369010 INTRASTAT code:

TechData
CONNECTO Series Commercial series: MULTI-WAY WIRE CONNECTOR Synthetical description: 3 WAYS Number of ways: 3x35mm² Connecting capacity: 450V Rated voltage: 49x46x30mm Dimensions:

Packaging
Box Description: 10 Quantity: 8001636500324 EAN code: 0.65 KG Gross weight: 0 Volume: 0X0X0 () Dimensions: Carton Description: 260 Quantity: 8001636501826 EAN code: 16.9 KG Gross weight: 31416 CCM Volume: 340X385X240 (MM) Dimensions:

Note:

Protection degree: IP20

Max. service temperature - continuous duty: 85°C.

Rated voltage 450V~.

Captive screws.

Cage clamp connectors.

In-out connections and multiple derivations

Self-extinguishing material in compliance with IEC 60695-2-1 standard 850°C.

Engineering plastic casing

Approvals and Certifications

I.M.Q. - ENEC 03

Standards and Laws

	EN 60998-2-1 (2004) View certificate
[European Standard] Connecting devices for low-voltage circuits for household and similar purposes - Part 2-1: Particular requirements for connecting devices as separate entities with screw-type clamping units
	EN 60998-1 (2004) View certificate
[European Standard] Connecting devices for low-voltage circuits for household and similar purposes - Part 1: General requirements
