» Adaptoare industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

610.368

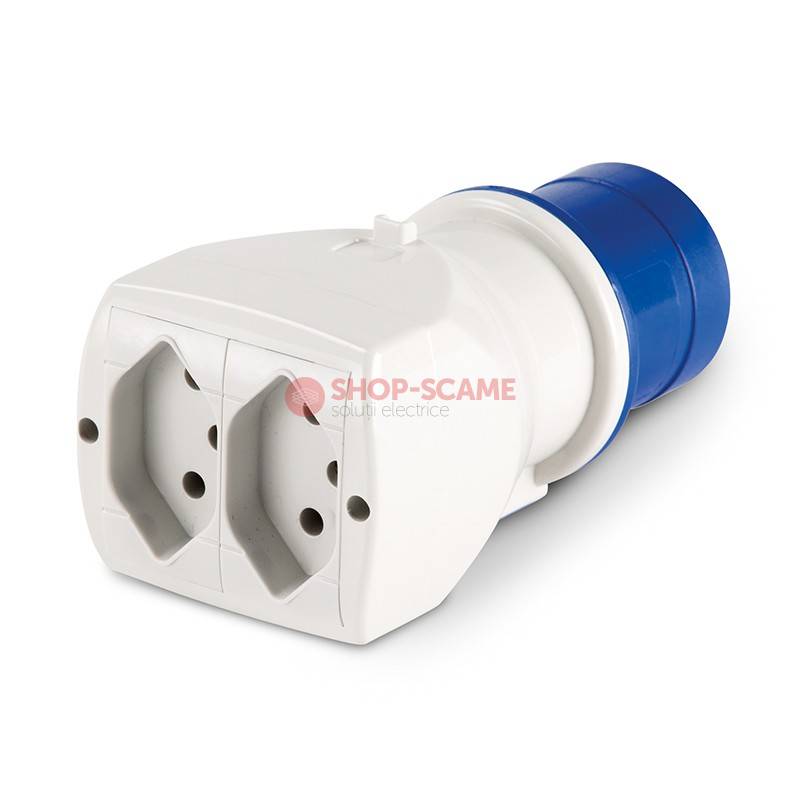

ONE-WAY ADAPTOR 16A IP20 250V AC SCAME 610.368

Cod EAN: 8001636243610

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 92.21 Lei / 1

Pret cu TVA: 111.57 Lei / 1

«« Inapoi

Inainte »»

Master data
10NR Minimum order: 0.189KG Net Weight: 8001636243610 EAN code: 85366990 INTRASTAT code:

TechData
ADAPTO Series Commercial series: ONE-WAY ADAPTOR Synthetical description: IP20 Protection degree: Plug IEC 309 2P+E 16A Inlet supply unit: 10A Rated current: 2P+E Poles: 250V Rated voltage: 2 No. p.m.socket 2P+E 10A CH std: 2 x SUISSE Notes:

Packaging
Carton Description: 100 Quantity: 8001636691435 EAN code: 20.9 KG Gross weight: 72450 CCM Volume: 375X560X345 (MM) Dimensions: Box Description: 10 Quantity: 8001636691428 EAN code: 2.09 KG Gross weight: 5428 CCM Volume: 115X295X160 (MM) Dimensions:

Note:

For temporary use only

Approvals and Certifications

View certificate

Standards and Laws

EN 50250 (2002)

[European Standard] Conversion adapters for industrial use

Annexed

Instruction manual 211.78 KB
