815.1365

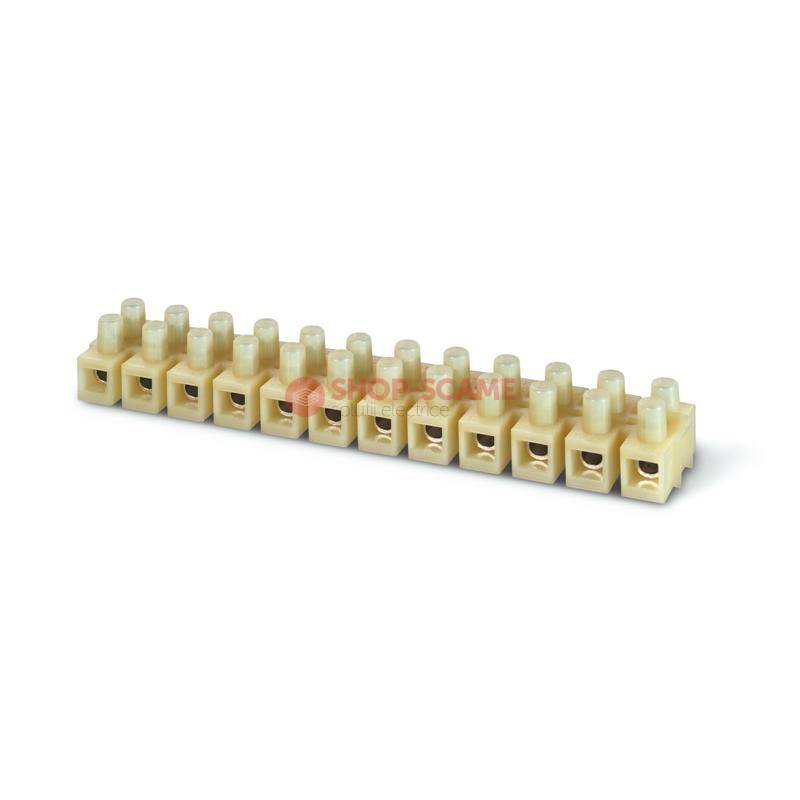

TERMINAL STRIP 25MM T140 NATURAL SCAME 815.1365

Cod EAN: 8001636017099

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 42.26 Lei / 1

Pret cu TVA: 51.13 Lei / 1

«« Inapoi

Inainte »»

Master data
15NR Minimum order: 0.25KG Net Weight: 8001636017099 EAN code: 85369010 INTRASTAT code:

TechData
CONNECTO Series Commercial series: TERMINAL BLOCK T140 Synthetical description: 25mm² Connecting capacity: 750V Rated voltage: 210x38x36mm Dimensions: 17,5mm Pitch: 4,3mm Ø fixing hole: TRANSPARENT Colour:

Packaging
Carton Description: 60 Quantity: 8001636924243 EAN code: 16.02 KG Gross weight: 30246 CCM Volume: 355X355X240 (MM) Dimensions: Box Description: 15 Quantity: 8001636983257 EAN code: 4.005 KG Gross weight: 4840.363 CCM Volume: 121X218X183.5 (MM) Dimensions:

Note:

Max. service temperature - continuous duty: 140°C.

Captive screws of zinc-plated steel

12 poles

Self-extinguishing material in compliance with IEC 60695-2-1 standard 850°C.

Engineering plastic casing

Nickel-plated brass terminal

Approvals and Certifications

I.M.Q. - ENEC 03

Standards and Laws

	EN 60998-1 (2004) View certificate
[European Standard] Connecting devices for low-voltage circuits for household and similar purposes - Part 1: General requirements
	EN 60998-2-1 (2004) View certificate
[European Standard] Connecting devices for low-voltage circuits for household and similar purposes - Part 2-1: Particular requirements for connecting devices as separate entities with screw-type clamping units
