675.2104B

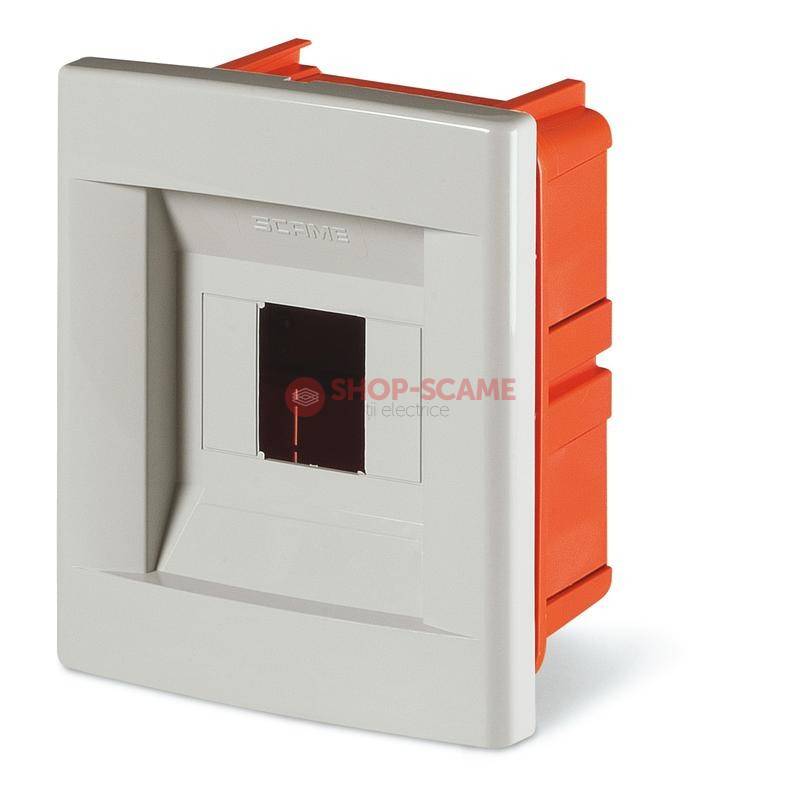

FLUSH MOUNTING CONSUMER UNIT 4 DIN MOD. SCAME 675.2104B

Cod EAN: 8001636077901

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 26.05 Lei / 1

Pret cu TVA: 31.52 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.328KG Net Weight: 8001636077901 EAN code: 85381000 INTRASTAT code:

TechData
DOMINO IP40 Series [flush] Commercial series: CONSUMER UNIT Synthetical description: WHITE Colour: FLUSH MOUNTING Mounting version: IP40 Protection degree: 4 DIN Modularity: 4+1/2 MOD. No. modules: 180x150x75mm Dimensions: 17W Dissipable power:

Packaging
Carton Description: 38 Quantity: 8001636878140 EAN code: 13.756 KG Gross weight: 109200 CCM Volume: 390X560X500 (MM) Dimensions: Bag Description: 1 Quantity: 8001636878157 EAN code: 0.362 KG Gross weight: 0 Volume: 0X0X0 () Dimensions:

Note:

Without window.

Power dissipation calculated in conformity with CEI 23-49 italian standards

(*) Power dissipation calculated when 2 consumer units are on top of each other joined by specially designed accessories.

Approvals and Certifications

I.M.Q.

Standards and Laws

	CEI 23-48 (1995) View certificate
[Italian Standard] Involucri per apparecchi per installazioni fisse per uso domestico e similare. Parte 1: Prescrizioni generali.
	CEI 23-49 (1996) View certificate
[Italian Standard] Involucri per apparecchi per installazioni fisse per uso domestico e similare.
