» Cofrete si tablouri de sigurante IP40/IP66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

632.4506-329

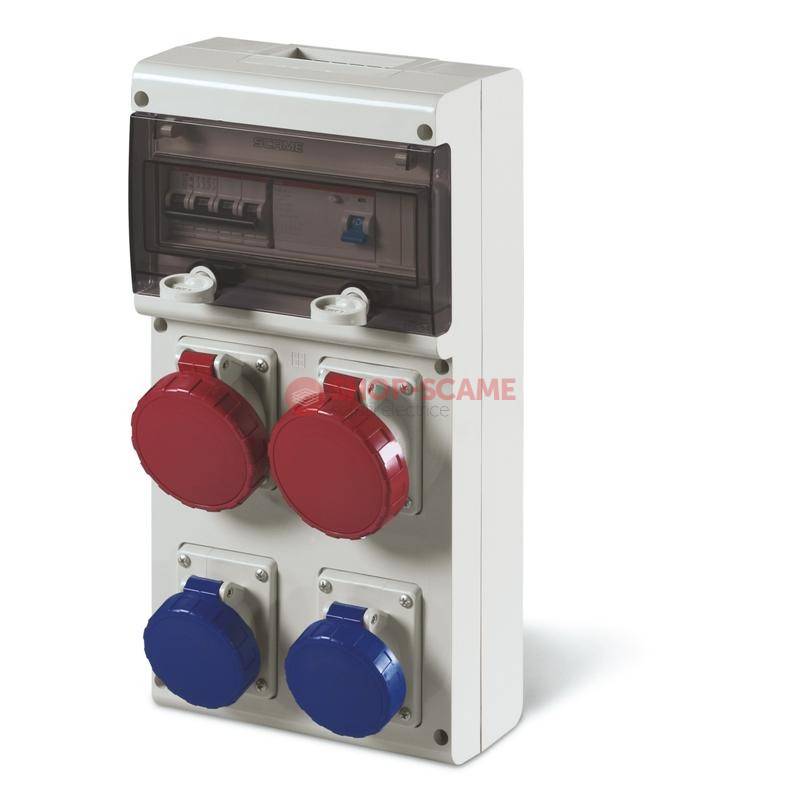

SURF.MOUNT.DISTRIBUTION ASSEMBLY BLOCK4 SCAME 632.4506-329

Cod EAN: 8001636031170

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 1559.30 Lei / 1

Pret cu TVA: 1886.75 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 3.551KG Net Weight: 8001636031170 EAN code: 85371098 INTRASTAT code:

TechData
BLOCK Series Commercial series: DISTRIBUTION ASSEMBLY Synthetical description: IP66 Protection degree: Direct supply to main switch Inlet supply unit: 4 No. of available outlets: 1 No. of sockets 2P+E 16A: 2 No. of sockets 3P+N+E 16A: 1 No. of sockets 3P+N+E 32A: MCB 4P 16A In disp. ing/tipo apparecchio: RCD 4P 25A 0,03A In disp. ing/tipo apparecchio: 9 KW Max power:

Packaging
Carton Description: 1 Quantity: 8001636928784 EAN code: 3.95 KG Gross weight: 17889.375 CCM Volume: 235X435X175 (MM) Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-3 (2012-04)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 3: Distribution boards intended to be operated by ordinary persons (DBO)

Annexed

Wiring diagram 39.24 KB
