656.5824-007

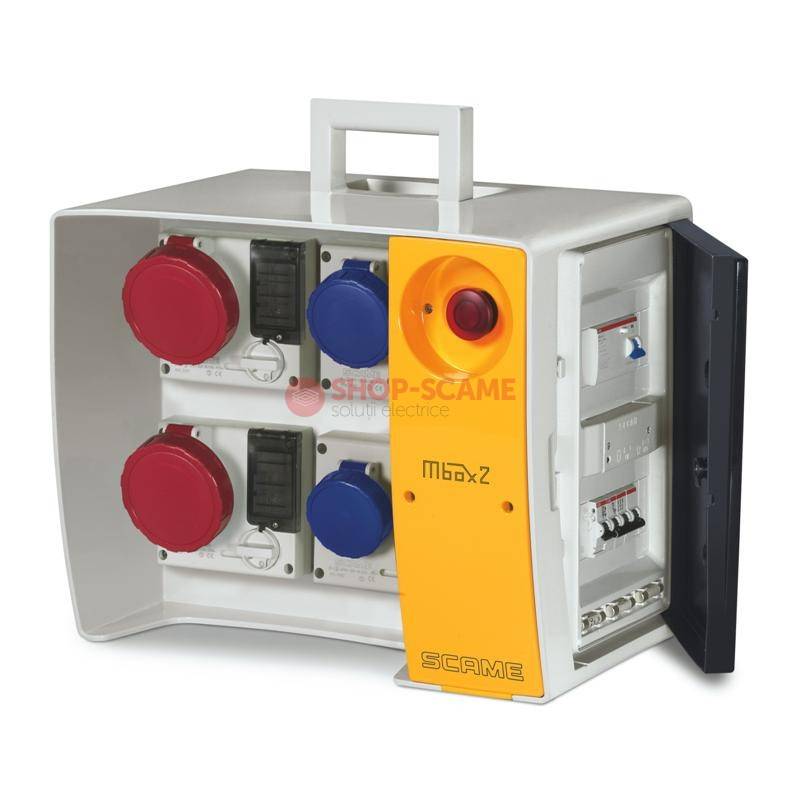

DISTRIBUTION ASSEMBLY (ACS) SCAME 656.5824-007

Cod EAN: 8001636196114

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 3345.08 Lei / 1

Pret cu TVA: 4047.55 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 10.55KG Net Weight: 8001636196114 EAN code: 85371098 INTRASTAT code:

TechData
MBOX2 Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP65 Protection degree: Plug Inlet supply unit: 4 No. of available outlets: 1 No. of sockets 2P+E 16A: 2 No. of sockets 3P+E 16A: 1 No. of sockets 3P+E 32A: MCB 4P 32A In disp. ing/tipo apparecchio: RCD 4P 40A 0,03A In disp. ing/tipo apparecchio: 18 KW Max power:

Packaging
Carton Description: 1 Quantity: EAN code: 11.45 KG Gross weight: 62903.75 CCM Volume: 350X455X395 (MM) Dimensions:

Note:

Plug IEC309 32A 3P+N+E

2m rubber cable H07RN-F

Approvals and Certifications

I.M.Q.

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 46.06 KB
