» Tablouri de sigurante si accesorii ip40/ip66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

673.4036B

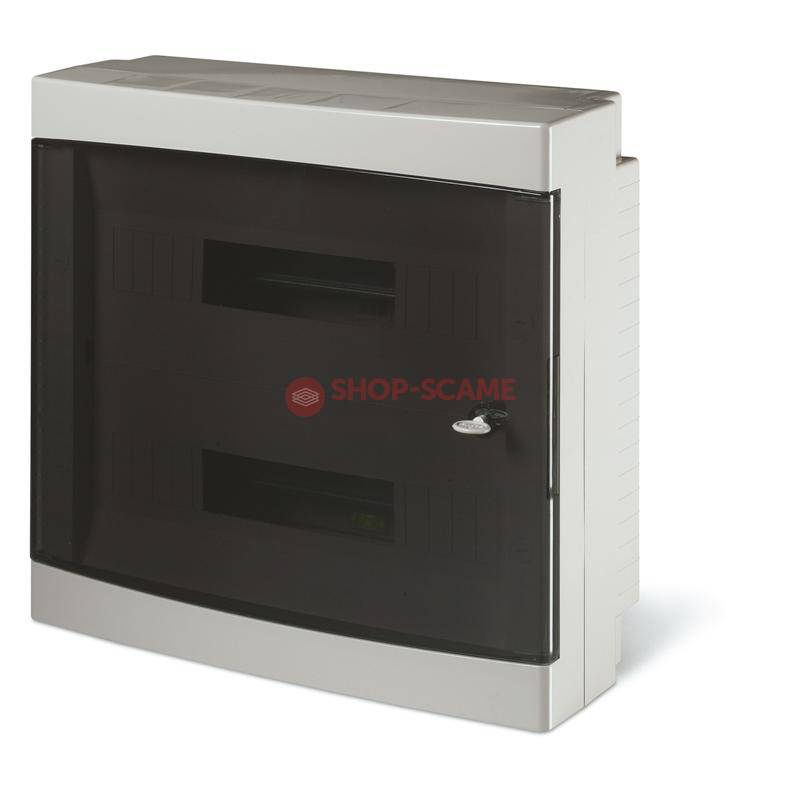

SURFACE MOUNTING CONSUMER UNIT 36 DIN MO SCAME 673.4036B

Cod EAN: 8001636077833

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 324.64 Lei / 1

Pret cu TVA: 392.81 Lei / 1

Inainte »»

Master data
1NR Minimum order: 2.6KG Net Weight: 8001636077833 EAN code: 85381000 INTRASTAT code:

TechData
DOMINO IP40 Series [surface] Commercial series: CONSUMER UNIT Synthetical description: WHITE Colour: SURFACE MOUNTING Mounting version: IP40 Protection degree: 36 DIN Modularity: 36+4 MOD. No. modules: 400x434x140mm Dimensions: 57W Dissipable power: (96W*) Dissipable power:

Packaging
Carton Description: 4 Quantity: 8001636878263 EAN code: 11.448 KG Gross weight: 106099.8 CCM Volume: 410X570X454 (MM) Dimensions: Bag Description: 1 Quantity: 8001636878270 EAN code: 2.862 KG Gross weight: 0 Volume: 0X0X0 () Dimensions:

Note:

Power dissipation calculated in conformity with CEI 23-49 italian standards

(*) Power dissipation calculated when 2 consumer units are on top of each other joined by specially designed accessories.

Approvals and Certifications

I.M.Q.

Standards and Laws

	CEI 23-48 (1995) View certificate
[Italian Standard] Involucri per apparecchi per installazioni fisse per uso domestico e similare. Parte 1: Prescrizioni generali.
	CEI 23-49 (1996) View certificate
[Italian Standard] Involucri per apparecchi per installazioni fisse per uso domestico e similare.

Annexed
