632.4009-015

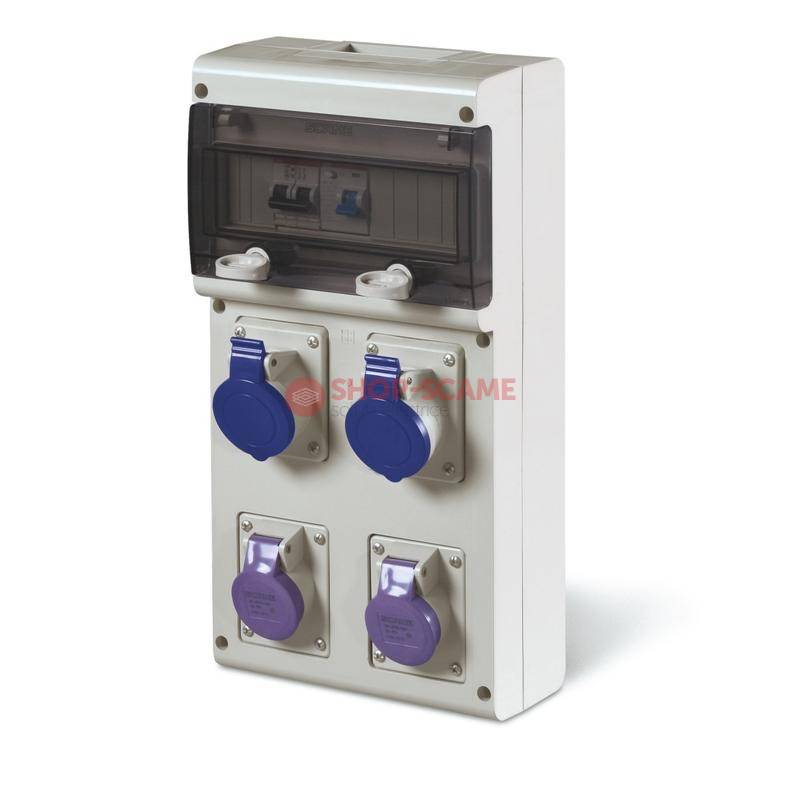

SURFACE MOUNTING DISTRIBUTION BOX BLOCK4 SCAME 632.4009-015

Cod EAN: 8001636030845

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 2447.27 Lei / 1

Pret cu TVA: 2961.20 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 5.926KG Net Weight: 8001636030845 EAN code: 85371098 INTRASTAT code:

TechData
BLOCK Series Commercial series: DISTRIBUTION ASSEMBLY Synthetical description: IP44 Protection degree: Direct supply to main switch Inlet supply unit: 4 No. of available outlets: 2 No. of sockets 24V: 2 No. of sockets 2P+E 16A: MCB 1P+N 16A In disp. ing/tipo apparecchio: Trafo 150 VA (230/24V) Max power: 1 No. MCB 1P+N 6A:

Packaging
Carton Description: 1 Quantity: 8001636929118 EAN code: 6.18 KG Gross weight: 17889.375 CCM Volume: 235X435X175 (MM) Dimensions:

Note:

Safety transformer 220/24V~ - SELV

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-3 (2012-04)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 3: Distribution boards intended to be operated by ordinary persons (DBO)

Annexed

Wiring diagram 43.83 KB
