670.6569-148

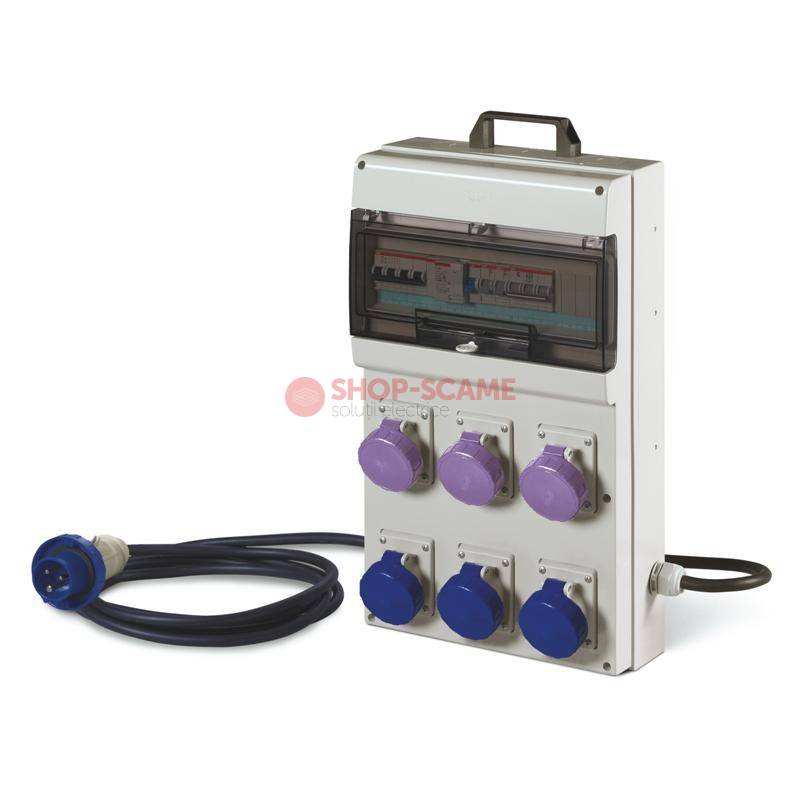

PORTABLE DISTRIBUTION ASSEMBLY DOMINO SCAME 670.6569-148

Cod EAN: 8001636065533

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 4425.88 Lei / 1

Pret cu TVA: 5355.31 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 10.95KG Net Weight: 8001636065533 EAN code: 85371098 INTRASTAT code:

TechData
DOMINO IP66 Series [assembly] Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP66 Protection degree: Plug Inlet supply unit: 6 No. of available outlets: 3 No. of sockets 24V: 2 No. of sockets 2P+E 16A: 1 No. of sockets 3P+E 16A: MCB 4P 16A In disp. ing/tipo apparecchio: RCD 4P 25A 0,03A In disp. ing/tipo apparecchio: 9 KW Max power: 1 No. MCB 2P 3A: 1 No. MCB 1P 10A: 2 No. switch disconnector 1P 16A: 1 No. switch disconnector 3P 32A:

Packaging
Carton Description: 1 Quantity: 8001636900568 EAN code: 11.946 KG Gross weight: 52338 CCM Volume: 440X610X195 (MM) Dimensions:

Note:

Plug IEC309 16A 3P+N+E

Safety transformer 220/24V~ - SELV

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 57.02 KB
