» Tablouri de sigurante si accesorii ip40/ip66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

657.8036-028

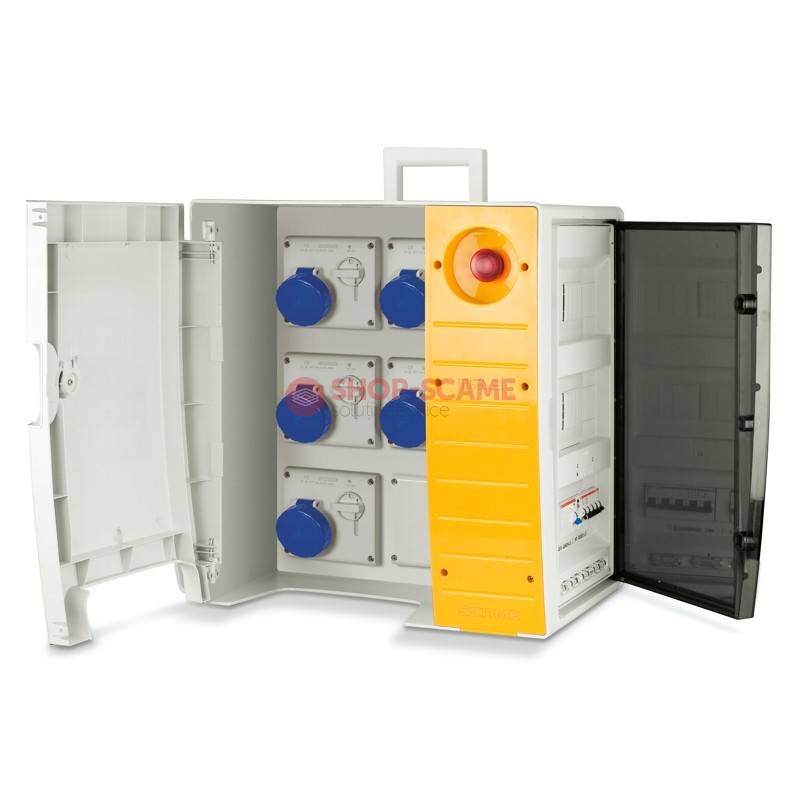

DISTRIBUTION ASSEMBLY (ACS) SCAME 657.8036-028

Cod EAN: 8001636207001

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 4347.60 Lei / 1

Pret cu TVA: 5260.60 Lei / 1

Inainte »»

Master data
1NR Minimum order: 13.95KG Net Weight: 8001636207001 EAN code: 85371098 INTRASTAT code:

TechData
MBOX3 Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP66 Protection degree: Supply by terminal block Inlet supply unit: 6 No. of available outlets: 3 No. of sockets 2P+E 16A: 3 No. of sockets 3P+E 16A: MCB 4P 16A In disp. ing/tipo apparecchio: RCD 4P 25A 0,03A In disp. ing/tipo apparecchio: 9 KW Max power:

Packaging
Carton Description: 1 Quantity: EAN code: 15.7 KG Gross weight: 147015 CCM Volume: 450X540X605 (MM) Dimensions:

Note:

With door

Approvals and Certifications

I.M.Q.

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

	Wiring diagram 58.36 KB
	Instruction manual 407.36 KB
