817.1602

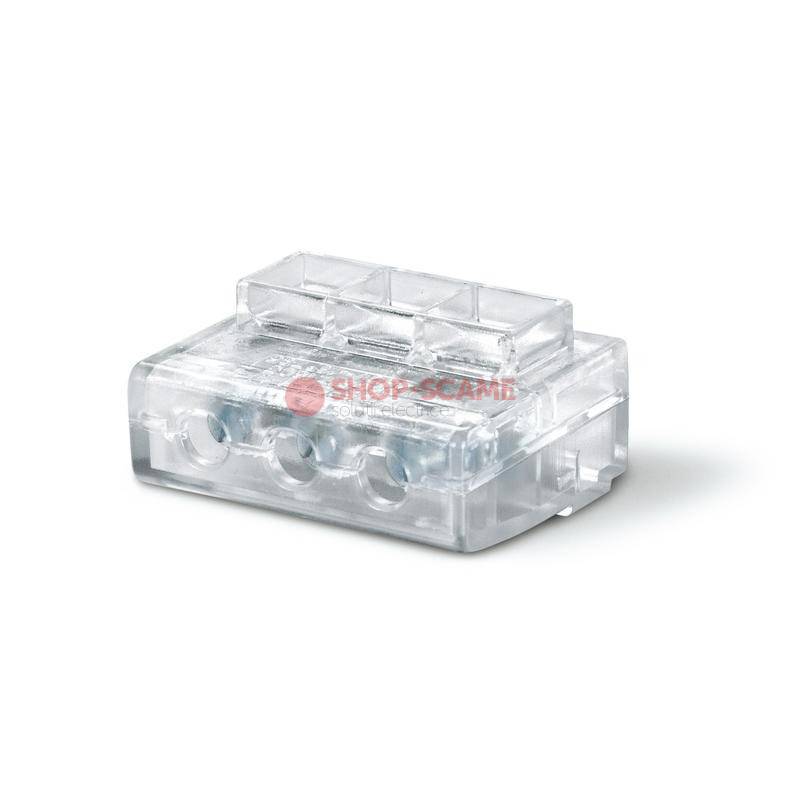

MULTI-WAY WIRE CONNECTOR 2x16mmq 450V AC SCAME 817.1602

Cod EAN: 8001636086712

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 5.71 Lei / 100

Pret cu TVA: 6.91 Lei / 100

«« Inapoi

Master data
10NR Minimum order: 0.025KG Net Weight: 8001636086712 EAN code: 85369010 INTRASTAT code:

TechData
CONNECTO Series Commercial series: MULTI-WAY WIRE CONNECTOR Synthetical description: 2 WAYS Number of ways: 2x16mm² Connecting capacity: 450V Rated voltage: 33x28x24mm Dimensions:

Packaging
Box Description: 10 Quantity: 8001636500270 EAN code: 0.31 KG Gross weight: 0 Volume: 0X0X0 () Dimensions: Carton Description: 270 Quantity: 8001636501833 EAN code: 8.37 KG Gross weight: 25501.875 CCM Volume: 335X435X175 (MM) Dimensions:

Note:

Protection degree: IP20

Max. service temperature - continuous duty: 85°C.

Rated voltage 450V~.

Captive screws.

Cage clamp connectors.

In-out connections and multiple derivations

Self-extinguishing material in compliance with IEC 60695-2-1 standard 850°C.

Engineering plastic casing

Approvals and Certifications

I.M.Q. - ENEC 03

Standards and Laws

	EN 60998-2-1 (2004) View certificate
[European Standard] Connecting devices for low-voltage circuits for household and similar purposes - Part 2-1: Particular requirements for connecting devices as separate entities with screw-type clamping units
	EN 60998-1 (2004) View certificate
[European Standard] Connecting devices for low-voltage circuits for household and similar purposes - Part 1: General requirements
