815.2361B

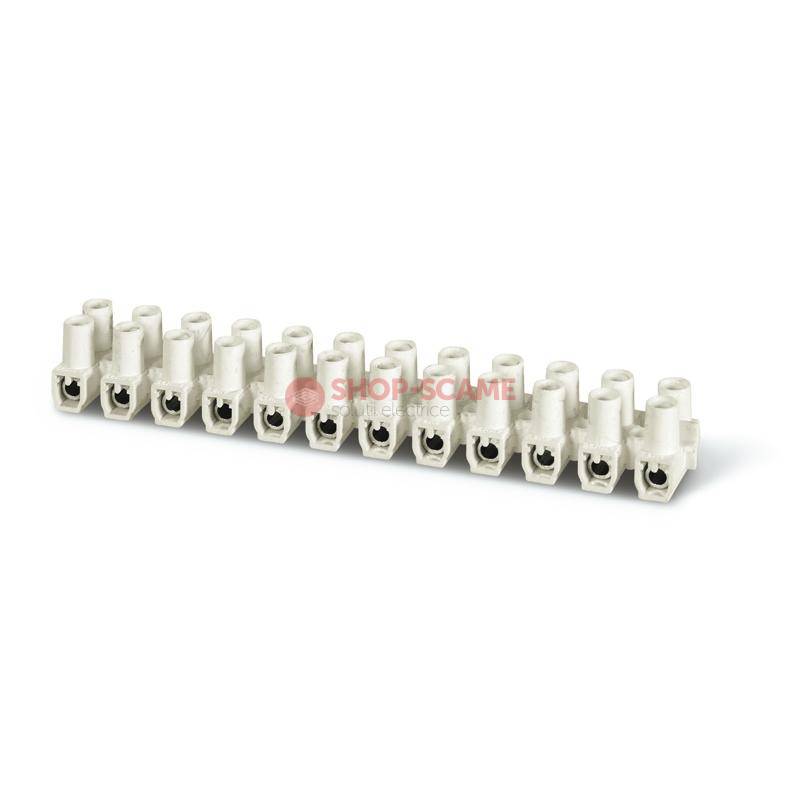

TERMINAL BLOCK T85 2,5mmq 250V AC WHITE SCAME 815.2361B

Cod EAN: 8001636075570

Marca: Scame

Cantitate minima: 50

Pret fara TVA: 5.44 Lei / 1

Pret cu TVA: 6.58 Lei / 1

«« Inapoi

Inainte »»

Master data
50NR Minimum order: 0.024KG Net Weight: 8001636075570 EAN code: 85369010 INTRASTAT code:

TechData
CONNECTO Series Commercial series: TERMINAL BLOCK T85 Synthetical description: 2,5mm² Connecting capacity: 250V Rated voltage: 95,5x15,5x16mm Dimensions: 8mm Pitch: 2,6mm Ø fixing hole: WHITE Colour:

Packaging
Carton Description: 800 Quantity: 8001636882734 EAN code: 20.8 KG Gross weight: 30246 CCM Volume: 355X355X240 (MM) Dimensions: Box Description: 50 Quantity: 8001636882741 EAN code: 1.3 KG Gross weight: 1447.686 CCM Volume: 102X166X85.5 (MM) Dimensions:

Note:

Max. service temperature - continuous duty: 85°C.

Captive screws of zinc-plated steel

12 poles

Nickel-plated brass terminal

Self-extinguishing material in compliance with IEC 60695-2-1 standard 850°C.

Engineering plastic casing

Approvals and Certifications

I.M.Q. - ENEC 03

Standards and Laws

	EN 60998-1 (2004) View certificate
[European Standard] Connecting devices for low-voltage circuits for household and similar purposes - Part 1: General requirements
	EN 60998-2-1 (2004) View certificate
[European Standard] Connecting devices for low-voltage circuits for household and similar purposes - Part 2-1: Particular requirements for connecting devices as separate entities with screw-type clamping units
