661.0314-017

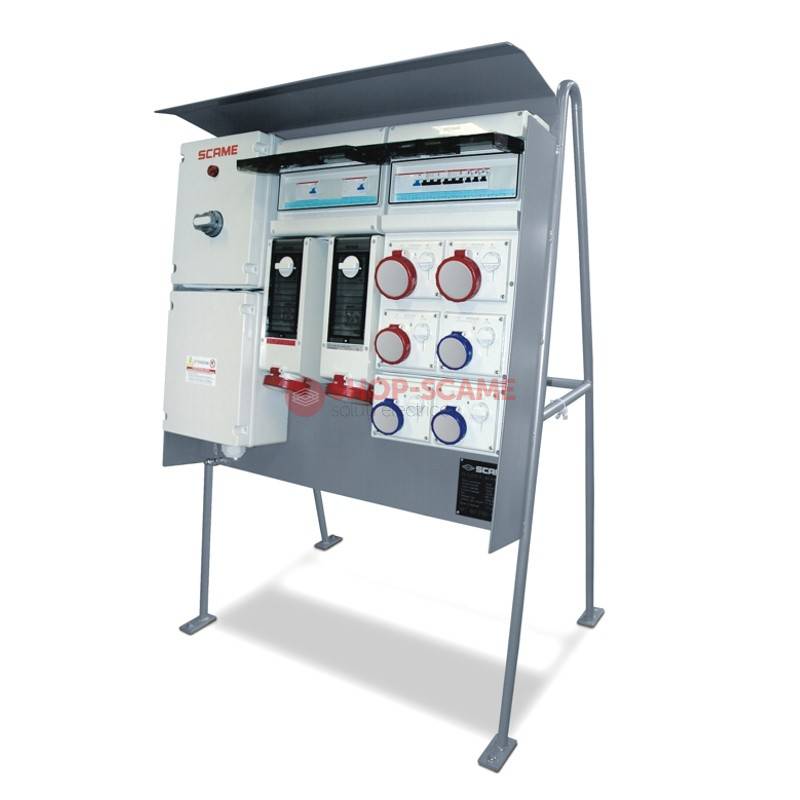

MEGA DISTRIBUTION ASSEMBLY SCAME 661.0314-017

Cod EAN: 8001636051802

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 108461.00 Lei / 1

Pret cu TVA: 131237.81 Lei / 1

Inainte »»

Master data
1NR Minimum order: 214KG Net Weight: 8001636051802 EAN code: 85371098 INTRASTAT code:

TechData
MEGA Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP55 Protection degree: With terminal block I/O Inlet supply unit: 4 No. of available outlets: 2 No. outlet w/ switch 3P+N 63A: 1 No. outlet w/ switch 3P+N 100A: 1 No. outlet w/ switch 3P+N 160A: Disconnecting switch 4P 630A In disp. ing/tipo apparecchio: 230 KW Max power:

Packaging
Case Description: 1 Quantity: 8001636918648 EAN code: 313 KG Gross weight: 4.053 M3 Volume: 1102X2010X1830 (MM) Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 52.35 KB
