656.7926-721

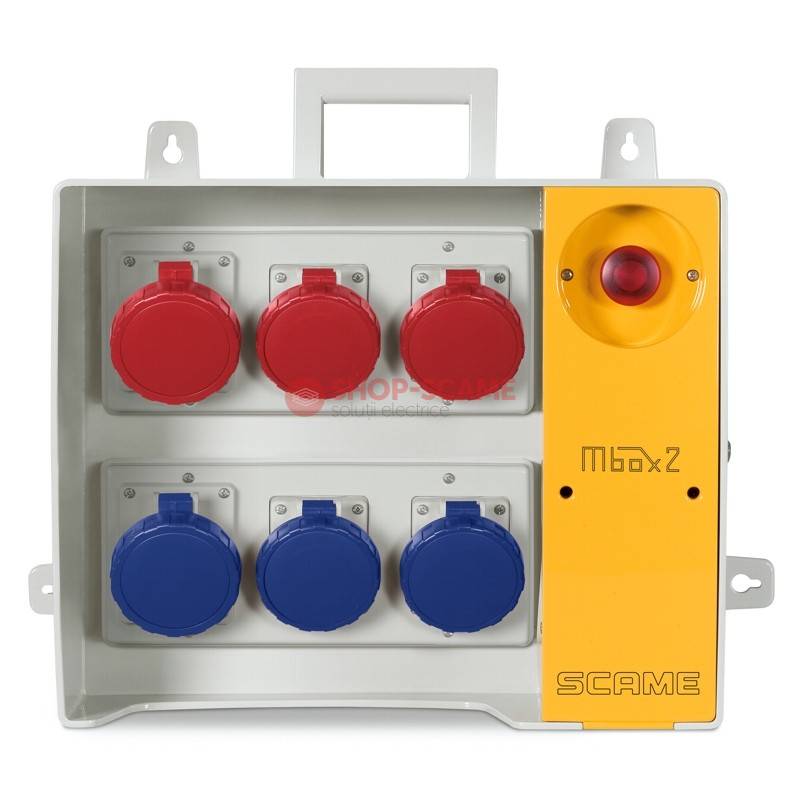

DISTRIBUTION ASSEMBLY (ACS) SCAME 656.7926-721

Cod EAN: 8001636212852

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 2725.09 Lei / 1

Pret cu TVA: 3297.36 Lei / 1

Inainte »»

Master data
1NR Minimum order: 9.15KG Net Weight: 8001636212852 EAN code: 85371098 INTRASTAT code:

TechData
MBOX2 Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP65 Protection degree: Supply by terminal block Inlet supply unit: 6 No. of available outlets: 2 No. of sockets 2P+E 16A: 2 No. of sockets 3P+N+E 16A: 2 No. of sockets 3P+N+E 32A: MCB 4P 32A In disp. ing/tipo apparecchio: RCD 4P 40A 0,03A In disp. ing/tipo apparecchio: 18 KW Max power: 1 No. MCB 1P 16A: 1 No. MCB 3P 16A:

Packaging
Carton Description: 1 Quantity: EAN code: 9.95 KG Gross weight: 54816.125 CCM Volume: 305X455X395 (MM) Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

	Wiring diagram 53.77 KB
	Instruction manual 407.36 KB
