805.5450

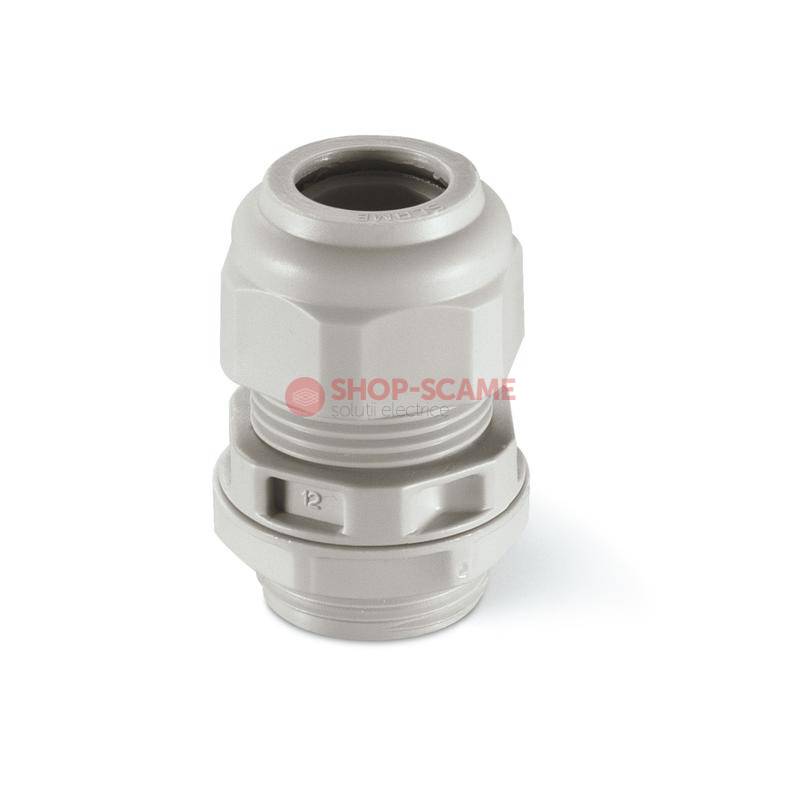

CABLE GLAND M50X1,5 LIGHT SCAME 805.5450

Cod EAN: 8001636124803

Marca: Scame

Cantitate minima: 10

Pret fara TVA: 11.91 Lei / 1

Pret cu TVA: 14.41 Lei / 1

«« Inapoi

Inainte »»

Master data
10NR Minimum order: 78.4G Net Weight: 8001636124803 EAN code: 85369010 INTRASTAT code:

TechData
UNION Series Commercial series: CABLE GLAND Synthetical description: IP66 Protection degree: LIGHT Type: GREY Colour: M50X1,5 Thread: ø50mm Fixing hole: ø30-38mm Cable size: 60mm Spanner size: 19mm Thread length: 15N/m Nut spanner coupler: 11,5N/m Seal spanner coupler:

Packaging
Carton Description: 100 Quantity: 8001636552453 EAN code: 9260 G Gross weight: 51600 CCM Volume: 300X400X430 (MM) Dimensions: Box Description: 10 Quantity: 8001636552446 EAN code: 926 G Gross weight: 3833.027 CCM Volume: 163X183X128.5 (MM) Dimensions:

Note:

STANDARD version: IP66

Cable glands are provided without gasket
