» Presetupe si accesorii ip66/ip68

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

805.3349.2

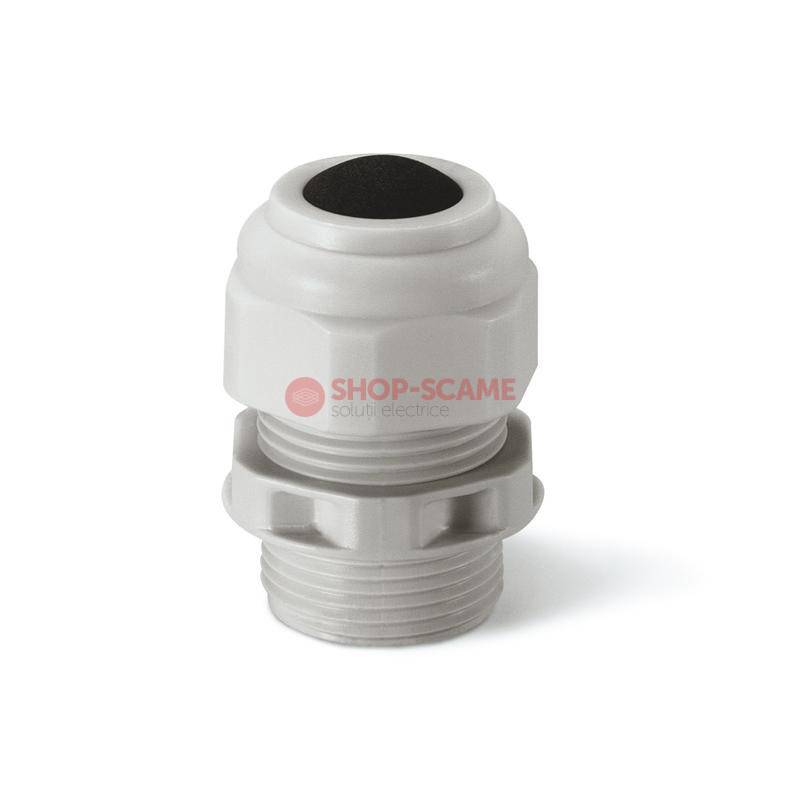

CABLE GLAND IP66 PG 48 SCAME 805.3349.2

Cod EAN: 8001636163321

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 12.56 Lei / 1

Pret cu TVA: 15.20 Lei / 1

«« Inapoi

Inainte »»

Master data
10NR Minimum order: 0.083KG Net Weight: 8001636163321 EAN code: 85369010 INTRASTAT code:

TechData
UNION Series Commercial series: CABLE GLAND Synthetical description: IP66 Protection degree: LIGHT Type: GREY Colour: PG48 Thread: ø60mm Fixing hole: ø34-44mm Cable size: 68mm Spanner size: 20mm Thread length: 15N/m Nut spanner coupler: 12,5N/m Seal spanner coupler:

Packaging
Carton Description: 100 Quantity: 8001636602172 EAN code: 0 KG Gross weight: 70297.5 CCM Volume: 260X525X515 (MM) Dimensions: Box Description: 10 Quantity: 8001636602165 EAN code: 0 KG Gross weight: 5683.47 CCM Volume: 236X247X97.5 (MM) Dimensions:

Note:

STANDARD version: IP66

Cable glands are provided without gasket

Approvals and Certifications

View certificate

Standards and Laws

Annexed
