815.23625B

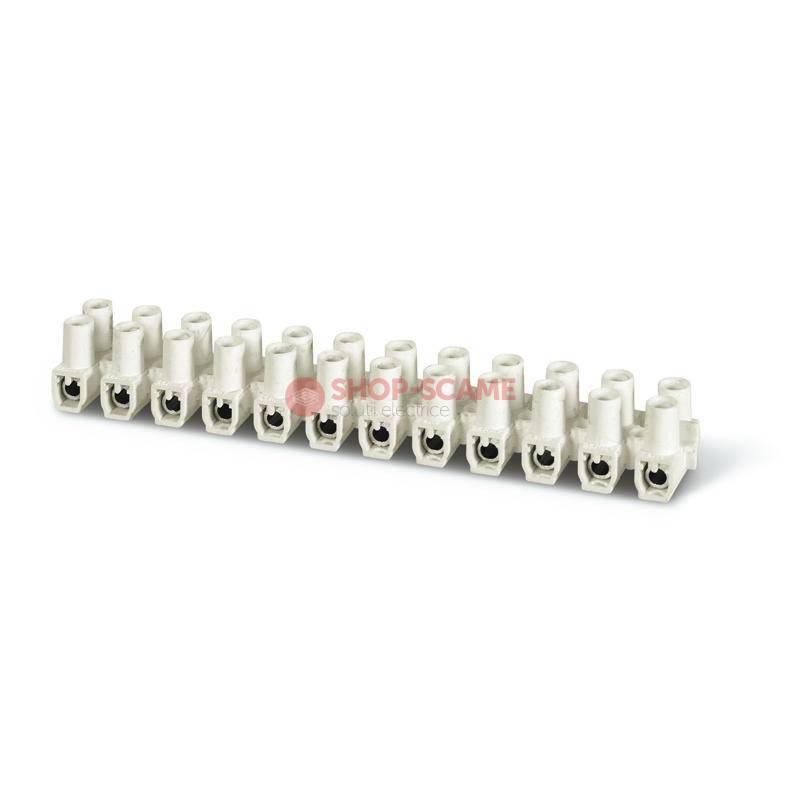

TERMINAL BLOCK T85 6mmq 450V AC WHITE SCAME 815.23625B

Cod EAN: 8001636113869

Marca: Scame

Cantitate minima: 50

Pret fara TVA: 7.61 Lei / 1

Pret cu TVA: 9.21 Lei / 1

«« Inapoi

Inainte »»

Master data
50NR Minimum order: 0.029KG Net Weight: 8001636113869 EAN code: 85369010 INTRASTAT code:

TechData
CONNECTO Series Commercial series: TERMINAL BLOCK T85 Synthetical description: 6mm² Connecting capacity: 450V Rated voltage: 120x16,6x17,4mm Dimensions: 10mm Pitch: 3,5mm Ø fixing hole: WHITE Colour:

Packaging
Carton Description: 400 Quantity: 8001636535050 EAN code: 12.8 KG Gross weight: 21656.25 CCM Volume: 275X375X210 (MM) Dimensions: Box Description: 50 Quantity: 8001636535043 EAN code: 1.6 KG Gross weight: 2176.2 CCM Volume: 130X180X93 (MM) Dimensions:

Note:

Max. service temperature - continuous duty: 85°C.

Captive screws of zinc-plated steel

12 poles

Nickel-plated brass terminal

Self-extinguishing material in compliance with IEC 60695-2-1 standard 850°C.

Engineering plastic casing

Approvals and Certifications

I.M.Q. - ENEC 03

Standards and Laws

	CEI EN 60998-1 (1993) View certificate
[Italian Standard] Connecting devices for low-voltage circuits for household and similar purposes Part 1: General requirements
	CEI EN 60998-2-1 (1993) View certificate
[Italian Standard] Connecting devices for low voltage circuits for household and similar purposesConnecting devices for low voltage circuits for household and similar purposes Part 2-1: Particular requirements for connecting devices as separate entities
