815.2362

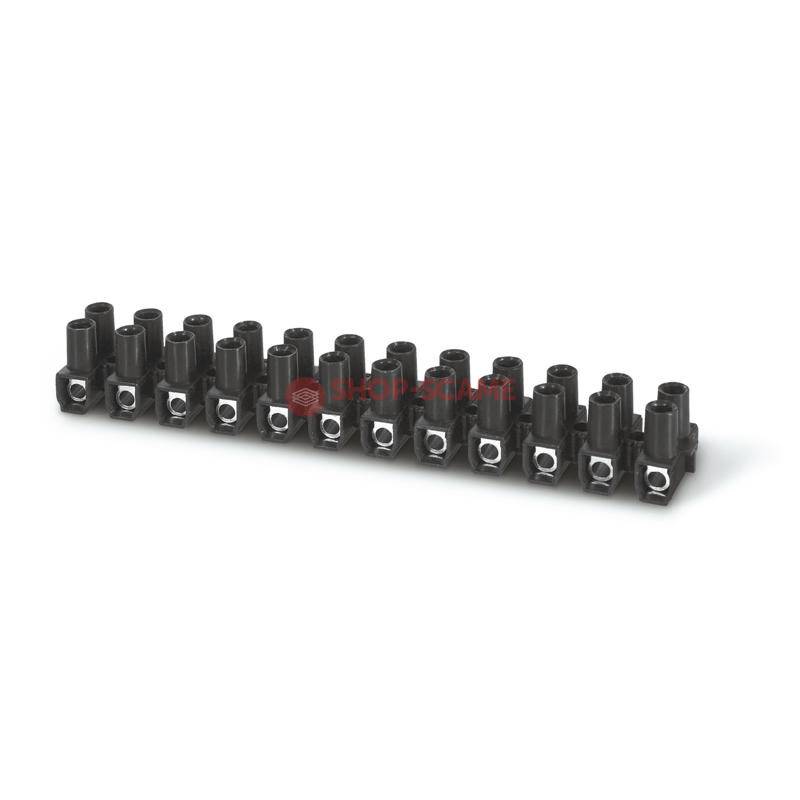

TERMINAL BLOCK T85 4mmq 450V AC BLACK SCAME 815.2362

Cod EAN: 8001636017129

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 5.87 Lei / 1

Pret cu TVA: 7.10 Lei / 1

«« Inapoi

Master data
50NR Minimum order: 0.033KG Net Weight: 8001636017129 EAN code: 85369010 INTRASTAT code:

TechData
CONNECTO Series Commercial series: TERMINAL BLOCK T85 Synthetical description: 4mm² Connecting capacity: 450V Rated voltage: 120x16,6x17,4mm Dimensions: 10mm Pitch: 3,5mm Ø fixing hole: BLACK Colour:

Packaging
Carton Description: 400 Quantity: 8001636896946 EAN code: 14 KG Gross weight: 21656.25 CCM Volume: 275X375X210 (MM) Dimensions: Box Description: 50 Quantity: 8001636983226 EAN code: 1.75 KG Gross weight: 2176.2 CCM Volume: 130X180X93 (MM) Dimensions:

Note:

Max. service temperature - continuous duty: 85°C.

Captive screws of zinc-plated steel

12 poles

Nickel-plated brass terminal

Self-extinguishing material in compliance with IEC 60695-2-1 standard 850°C.

Engineering plastic casing

Approvals and Certifications

I.M.Q. - ENEC 03

Standards and Laws

	EN 60998-1 (2004) View certificate
[European Standard] Connecting devices for low-voltage circuits for household and similar purposes - Part 1: General requirements
	EN 60998-2-1 (2004) View certificate
[European Standard] Connecting devices for low-voltage circuits for household and similar purposes - Part 2-1: Particular requirements for connecting devices as separate entities with screw-type clamping units

Annexed
