» Separatoare de sarcina - Butoane si accesorii IP65

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

590.YM48R1

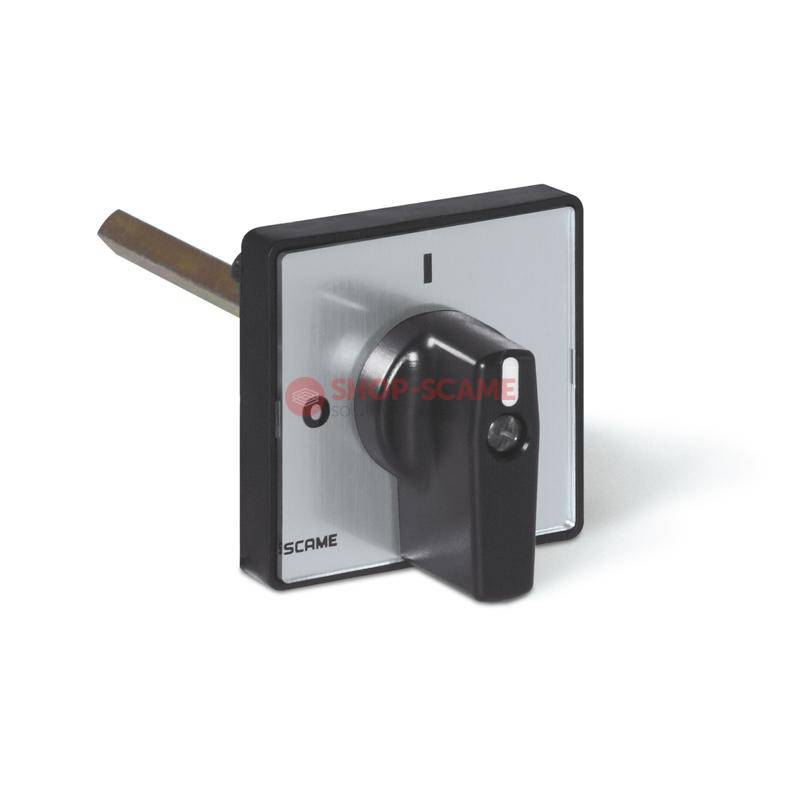

SWITCH FRONT OPER. 48 RED/YELLOW PAN.MTG SCAME 590.YM48R1

Cod EAN: 8001636112466

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 44.15 Lei / 1

Pret cu TVA: 53.42 Lei / 1

«« Inapoi

Inainte »»

Master data
10NR Minimum order: 0.036KG Net Weight: 8001636112466 EAN code: 85365080 INTRASTAT code:

TechData
COMMAND Series Commercial series: FRONT OPERATOR Synthetical description: IP65 Protection degree: EMERGENCY Type: YELLOW/RED Colour: F1 Switch size: Y1 Switch size: D1 Switch size: standard Diameter: 48x48mm Dimensions:

Packaging
Bag Description: 1 Quantity: 8001636533643 EAN code: 0.044 KG Gross weight: 0 Volume: 0X0X0 () Dimensions: Box Description: 10 Quantity: 8001636533650 EAN code: 0.44 KG Gross weight: 3363.025 CCM Volume: 193X205X85 (MM) Dimensions:

Note:

Shaft not included (to buy separately)

For general use and emergency switches.

For panel mounting version (R)

Handle not padlockable

Approvals and Certifications

View certificate

Standards and Laws

	EN 60947-3 (2006) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
	EN 60947-1 (2007) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-1/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-3/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units

Annexed

Instruction manual 459.02 KB
