» Separatoare de sarcina - Butoane si accesorii IP65

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

590.HEMF3202

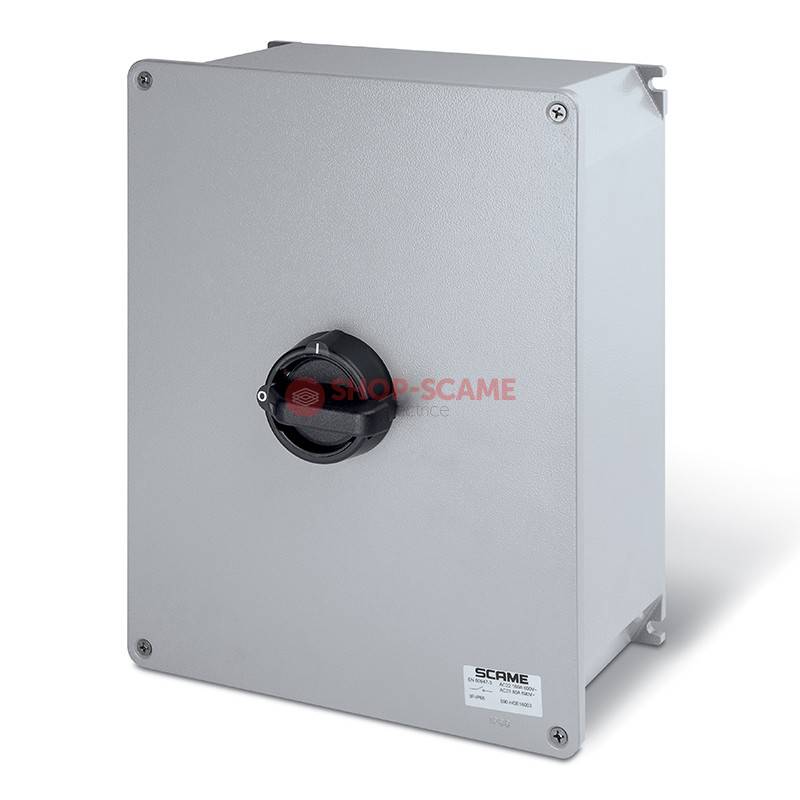

SWITCH DISCONNECTOR IP65 32A 2P SCAME 590.HEMF3202

Cod EAN: 8001636026350

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 461.16 Lei / 1

Pret cu TVA: 558.00 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0KG Net Weight: 8001636026350 EAN code: 85365080 INTRASTAT code:

TechData
ISOLATORS Series Commercial series: SWITCH DISCONNECTOR Synthetical description: IP65 Protection degree: EMERGENCY Type: YELLOW/RED Colour: 32A Rated current: 2P Poles: F1 Switch size: gG 10,3x38mm Fuse type: 217x253x93mm Dimensions: FUSE: CILINDRICO Notes:

Packaging
Box Description: 1 Quantity: EAN code: 0 KG Gross weight: 0 Volume: 0X0X0 () Dimensions:

Note:

Handle padlockable in OFF only (3 padlocks)

Equipped with door interlock

Blank sides

Fuses not supplied

Approvals and Certifications

View certificate

Standards and Laws

	EN 60947-3 (2006) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
	EN 60947-1 (2007) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-1/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-3/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units

Annexed
