» Separatoare de sarcina - Butoane si accesorii IP65

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

590.HEL8005

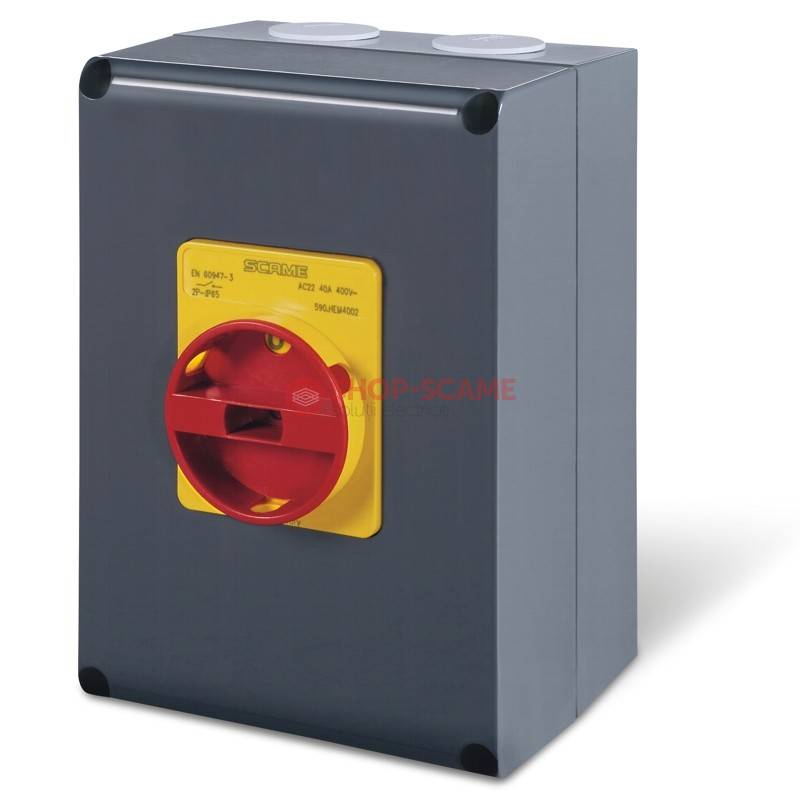

SWITCH DISCONNECTOR 80A 3P+N IP65 SCAME 590.HEL8005

Cod EAN: 8001636293516

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 871.03 Lei / 1

Pret cu TVA: 1053.95 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0KG Net Weight: 8001636293516 EAN code: 85365080 INTRASTAT code:

TechData
ISOLATORS Series Commercial series: SWITCH DISCONNECTOR Synthetical description: IP65 Protection degree: GENERAL Type: YELLOW/RED Colour: 80A Rated current: 3P+N Poles: Y2 Switch size: 150x210x107mm Dimensions: LUCCHETTABILI ON-OFF Notes:

Packaging
Carton Description: 5 Quantity: 8001636741666 EAN code: 0 KG Gross weight: 0 Volume: 0X0X0 () Dimensions: Box Description: 1 Quantity: EAN code: 0 KG Gross weight: 0 Volume: 0X0X0 () Dimensions:

Note:

Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position

Equipped with door interlock

With late break and early make neutral pole

Open threaded cable entry with cap / cable sleeve

Approvals and Certifications

View certificate

Standards and Laws

	EN 60947-3 (2006) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
	EN 60947-1 (2007) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-1/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-3/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units

Annexed
