590.KGE40005

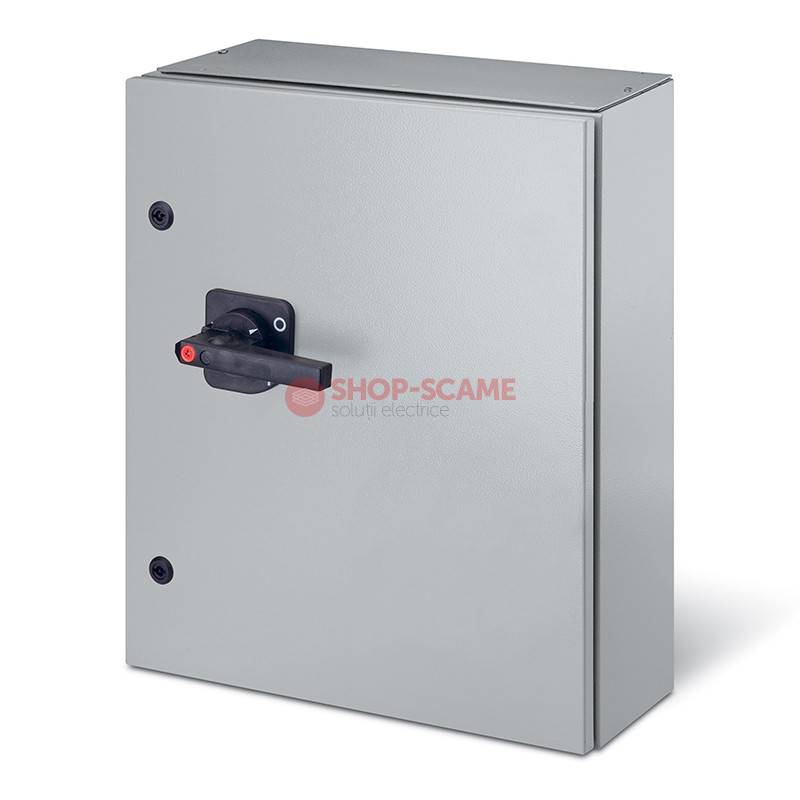

SWITCH DISCONNECTOR 400A 3P+N IP65 SCAME 590.KGE40005

Cod EAN: 8001636289854

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 2853.74 Lei / 1

Pret cu TVA: 3453.03 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 16.5KG Net Weight: 8001636289854 EAN code: 85365080 INTRASTAT code:

TechData
ISOLATORS Series Commercial series: SWITCH DISCONNECTOR Synthetical description: IP65 Protection degree: GENERAL Type: GREY/BLACK Colour: 400A Rated current: 3P+N Poles: K3 Switch size: 400x600x200mm Dimensions:

Packaging
Carton Description: 1 Quantity: EAN code: 17.65 KG Gross weight: 87100 CCM Volume: 400X650X335 (MM) Dimensions:

Note:

Handle padlockable in OFF only (3 padlocks)

TOP/BOTTOM = Top/Bottom connection

Equipped with door interlock

With late break and early make neutral pole

Gland plate cable entry

Approvals and Certifications

View certificate

Standards and Laws

	EN 60947-3 (2006) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
	EN 60947-1 (2007) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-1/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-3/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
