590.GR3205

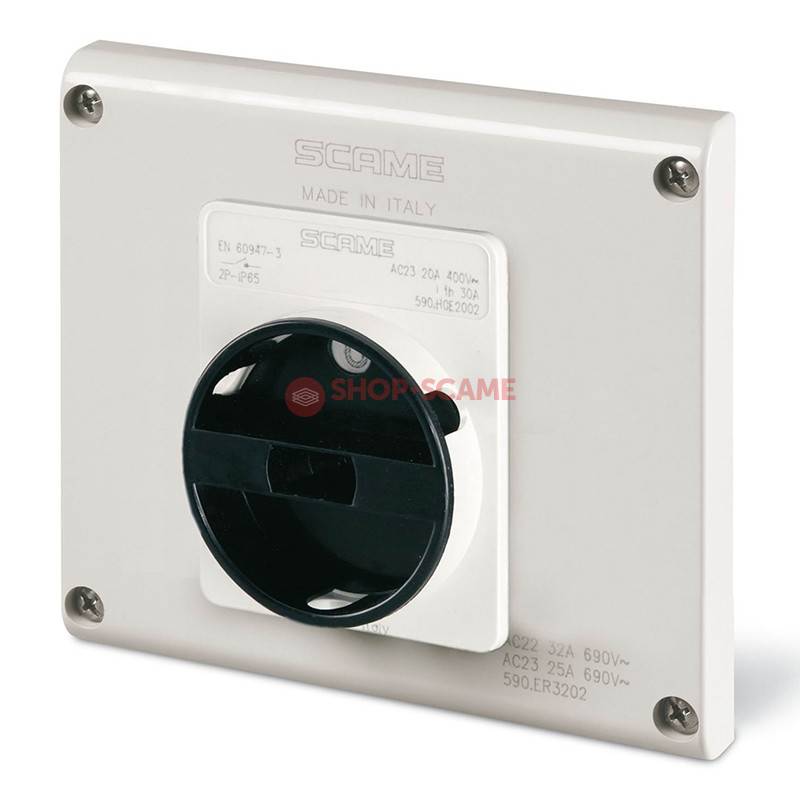

SWITCH DISCONNECTOR 32A 3P+N IP65 SCAME 590.GR3205

Cod EAN: 8001636265346

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 161.14 Lei / 1

Pret cu TVA: 194.98 Lei / 1

Inainte »»

Master data
1NR Minimum order: 0.245KG Net Weight: 8001636265346 EAN code: 85365080 INTRASTAT code:

TechData
ISOLATORS Series Commercial series: SWITCH DISCONNECTOR Synthetical description: IP65 Protection degree: GENERAL Type: GREY/BLACK Colour: 32A Rated current: 3P+N Poles: Y1 Switch size: 136x125mm Dimensions:

Packaging
Carton Description: 12 Quantity: 8001636711720 EAN code: 4.116 KG Gross weight: 28800 CCM Volume: 300X400X240 (MM) Dimensions: Box Description: 1 Quantity: 8001636711713 EAN code: 0.343 KG Gross weight: 2041.536 CCM Volume: 128X147X108.5 (MM) Dimensions:

Note:

With panel mounting version (R) switch

Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position

With late break and early make neutral pole

Approvals and Certifications

View certificate

Standards and Laws

EN 60947-3 (2006)

[European Standard] Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units

Annexed
