» Separatoare de sarcina - Butoane si accesorii IP65

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

590.K20005B

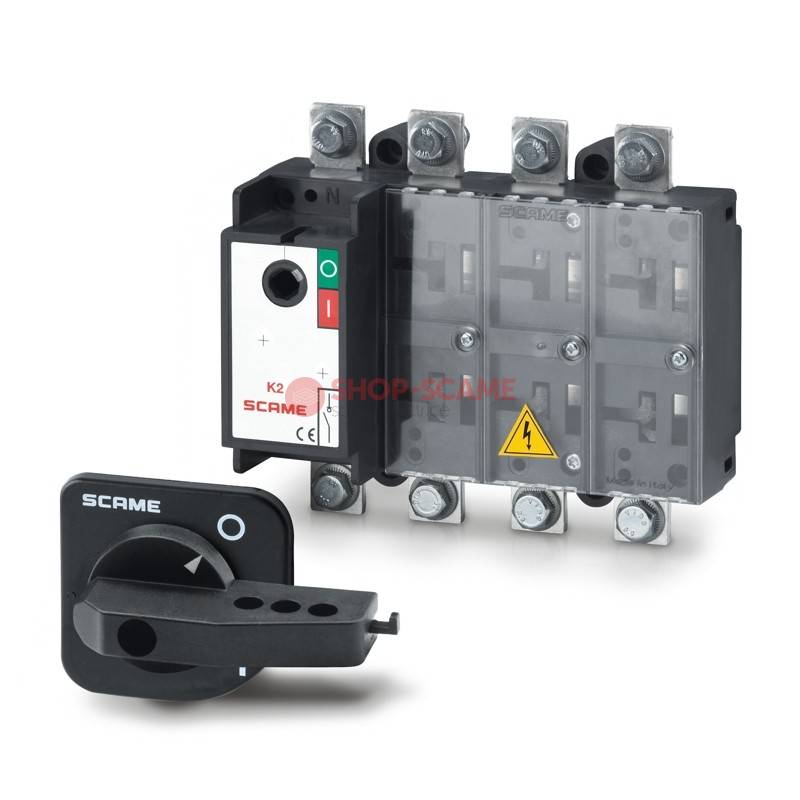

SWITCH DISCONNECTOR 200A 3P+N B SCAME 590.K20005B

Cod EAN: 8001636291574

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 973.10 Lei / 1

Pret cu TVA: 1177.45 Lei / 1

Inainte »»

Master data
1NR Minimum order: 1.606KG Net Weight: 8001636291574 EAN code: 85365080 INTRASTAT code:

TechData
COMMAND Series Commercial series: SWITCH DISCONNECTOR Synthetical description: BOX (B) Type: 200A Rated current: 3P+N Poles: K2 Switch size:

Packaging
Box Description: 1 Quantity: EAN code: 1.677 KG Gross weight: 3833.027 CCM Volume: 163X183X128.5 (MM) Dimensions:

Note:

BOX (B) = Base mounting

Screw fixing

Handle padlockable in OFF only (3 padlocks)

Door interlock handle and 200mm shaft included

With late break and early make neutral pole

Approvals and Certifications

View certificate

Standards and Laws

	EN 60947-3 (2006) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
	EN 60947-1 (2007) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-1/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-3/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units

Annexed
