» Separatoare de sarcina - Butoane si accesorii IP65

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

590.YA1005B

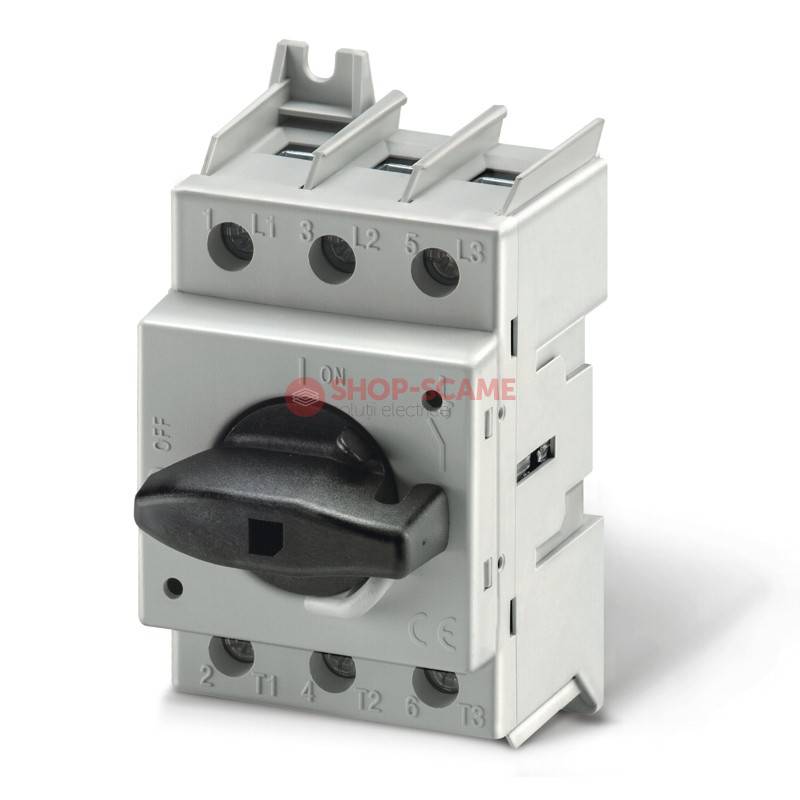

SWITCH DISCONNECTOR 100A 3P+N B SCAME 590.YA1005B

Cod EAN: 8001636288765

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 388.24 Lei / 1

Pret cu TVA: 469.77 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.332KG Net Weight: 8001636288765 EAN code: 85365080 INTRASTAT code:

TechData
COMMAND Series Commercial series: SWITCH DISCONNECTOR Synthetical description: BOX (B) Type: 100A Rated current: 3P+N Poles: Y4 Switch size:

Packaging
Box Description: 6 Quantity: 8001636738833 EAN code: 2.136 KG Gross weight: 5890.104 CCM Volume: 198X268X111 (MM) Dimensions:

Note:

BOX (B) = Base mounting

DIN rail / screw fixing

Equipped with direct handle

With late break and early make neutral pole

Approvals and Certifications

View certificate

Standards and Laws

	UL 508 View certificate
[American Standard] Industrial Control Equipment
	CSA C22.2 N°. 14-05 View certificate
[Canadian Standard] Industrial control equipment
	EN 60947-3 (2006) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
	EN 60947-1 (2007) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-1/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-3/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
