» Separatoare de sarcina - Butoane si accesorii IP65

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

590.YA1004R

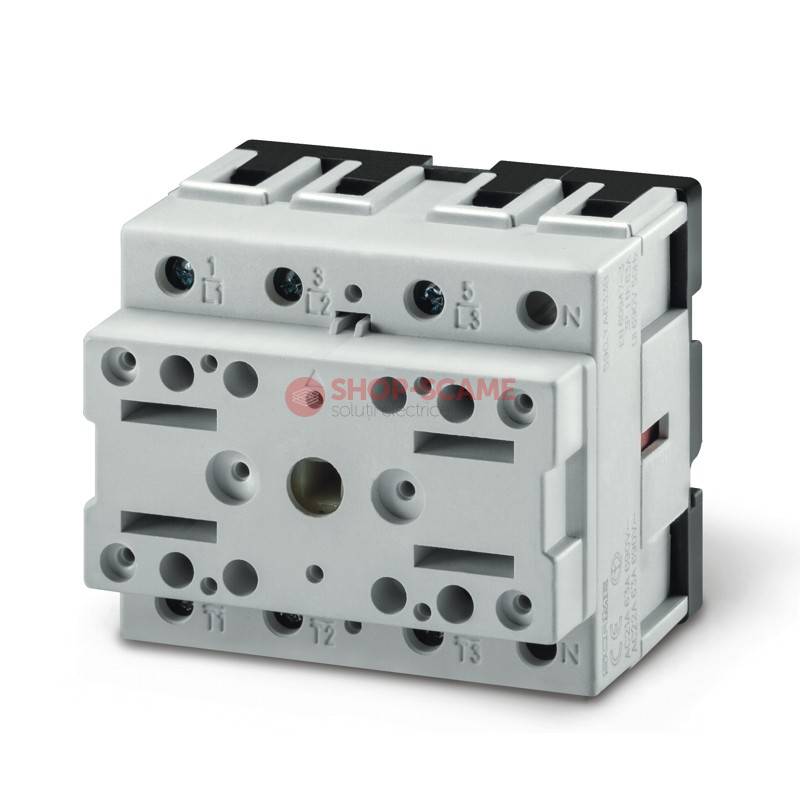

Switch Discon P.Mount 100A 4P SCAME 590.YA1004R

Cod EAN: 8001636221700

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 378.68 Lei / 1

Pret cu TVA: 458.20 Lei / 1

«« Inapoi

Master data
6NR Minimum order: 0.375KG Net Weight: 8001636221700 EAN code: 85365080 INTRASTAT code:

TechData
COMMAND Series Commercial series: SWITCH DISCONNECTOR Synthetical description: REAR (R) Type: 100A Rated current: 4P Poles: Y2 Switch size:

Packaging
Box Description: 6 Quantity: 8001636670416 EAN code: 2.364 KG Gross weight: 5890.104 CCM Volume: 198X268X111 (MM) Dimensions:

Note:

REAR (R) = Panel mounting

Approvals and Certifications

View certificate

Standards and Laws

	EN 60947-3 (2006) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
	EN 60947-1 (2007) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-1/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-3/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
	UL 60947-1 View certificate
[American Standard] Low-Voltage Switchgear and Controlgear - Part 1: General rules
	UL 60947-4-1 View certificate
[American Standard] Low-Voltage Switchgear and Controlgear - Part 4-1: Contactors and Motor-Starters - Electromechanical Contactors and Motor-Starters
	CSA C22.2 No. 60947-1-13 View certificate
[Canadian Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	CSA C22.2 No. 60947-4-1-14 View certificate
[Canadian Standard] Low-voltage switchgear and controlgear - Part 4-1: Contactors and motor-starters - Electromechanical contactors and motor-starters

Annexed
