Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.
671.6546-490

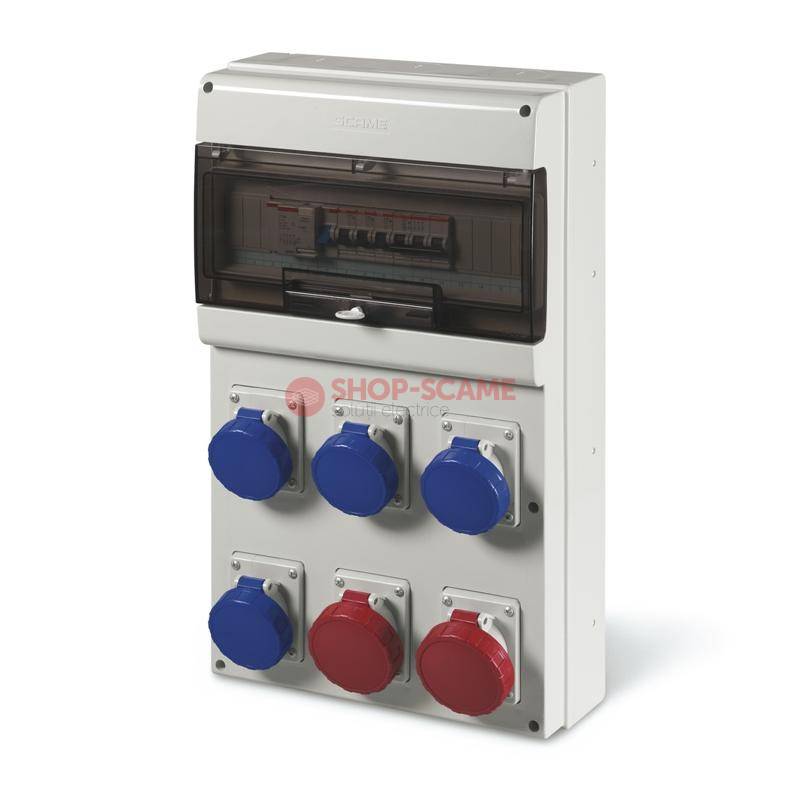

SURF.MOUNT.DISTRIBUTION ASSEMBLY DOMINO SCAME 671.6546-490
Cod EAN: 8001636141763
Marca: Scame
Cantitate minima: 1
Pret fara TVA: 3131.92 Lei / 1
Pret cu TVA: 3789.62 Lei / 1
SURF.MOUNT.DISTRIBUTION ASSEMBLY DOMINO SCAME 671.6546-490
1NR
Minimum order:
0KG
Net Weight:
8001636141763
EAN code:
85371098
INTRASTAT code:
Commercial series:
DISTRIBUTION ASSEMBLY
Synthetical description:
IP66
Protection degree:
Supply by terminal block
Inlet supply unit:
4
No. of available outlets:
1
No. sockets 2P+E 16A IT std.:
1
No. sockets 2P+E 16A D std.:
1
No. of sockets 2P+E 16A:
1
No. of sockets 3P+E 16A:
MCB 4P 16A
In disp. ing/tipo apparecchio:
RCD 4P 25A 0,03A
In disp. ing/tipo apparecchio:
9 KW
Max power:
Carton
Description:
1
Quantity:
8001636569529
EAN code:
0 KG
Gross weight:
40443 CCM
Volume:
340X610X195 (MM)
Dimensions:
EN 61439-3 (2012-04)
View certificate
[European Standard] Low-voltage switchgear and controlgear assemblies - Part 3: Distribution boards intended to be operated by ordinary persons (DBO)
