» Tablouri de sigurante si accesorii ip40/ip66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

671.6546-431

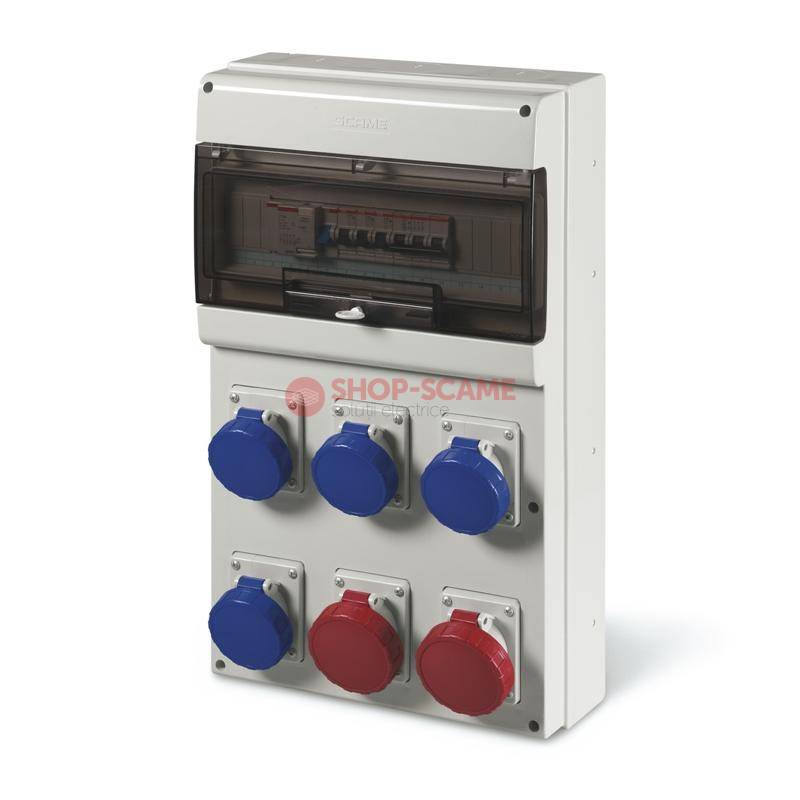

SURF.MOUNT.DISTRIBUTION ASSEMBLY DOMINO SCAME 671.6546-431

Cod EAN: 8001636076959

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 3063.26 Lei / 1

Pret cu TVA: 3706.54 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 6.361KG Net Weight: 8001636076959 EAN code: 85371098 INTRASTAT code:

TechData
DOMINO IP66 Series [assembly] Commercial series: DISTRIBUTION ASSEMBLY Synthetical description: IP66 Protection degree: Direct supply to main switch Inlet supply unit: 4 No. of available outlets: 4 No. of sockets 2P+E 16A: MCB 3P 32A In disp. ing/tipo apparecchio: 10 KW Max power: 4 No. MCB 2P 16A:

Packaging
Carton Description: 1 Quantity: 8001636880266 EAN code: 7.1 KG Gross weight: 40443 CCM Volume: 340X610X195 (MM) Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-3 (2012-04)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 3: Distribution boards intended to be operated by ordinary persons (DBO)

Annexed

Wiring diagram 50.36 KB
