» Tablouri de sigurante si accesorii ip40/ip66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

671.6066-477

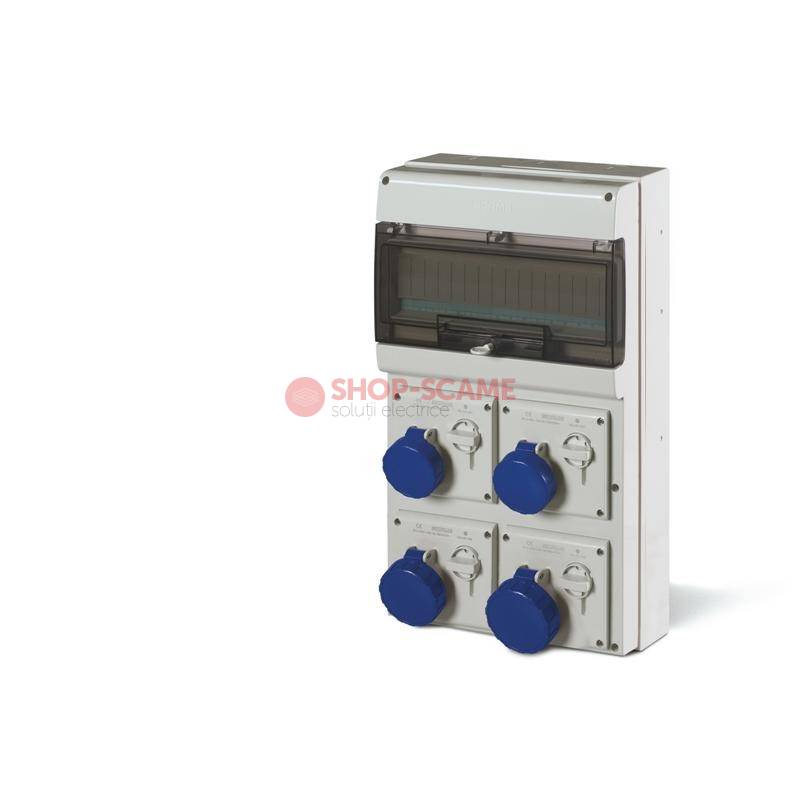

SURF.MOUNT.DISTRIBUTION ASSEMBLY DOMINO SCAME 671.6066-477

Cod EAN: 8001636114941

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 3089.67 Lei / 1

Pret cu TVA: 3738.50 Lei / 1

Inainte »»

Master data
1NR Minimum order: 6.367KG Net Weight: 8001636114941 EAN code: 85371098 INTRASTAT code:

TechData
DOMINO IP66 Series [assembly] Commercial series: DISTRIBUTION ASSEMBLY Synthetical description: IP44 Protection degree: Direct supply to main switch Inlet supply unit: 6 No. of available outlets: 4 No. p.m. socket 2P+E 16A P30: 2 No. of sockets 3P+N+E 32A: RCD 4P 100A 0,03A In disp. ing/tipo apparecchio: 55 KW Max power: 2 No. MCB 1P+N 16A: 2 No. MCB 4P 32A:

Packaging
Carton Description: 1 Quantity: 8001636536408 EAN code: 7.106 KG Gross weight: 40443 CCM Volume: 340X610X195 (MM) Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-3 (2012-04)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 3: Distribution boards intended to be operated by ordinary persons (DBO)

Annexed

Wiring diagram 54.69 KB
