» Fise si prize industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

513.1653TH

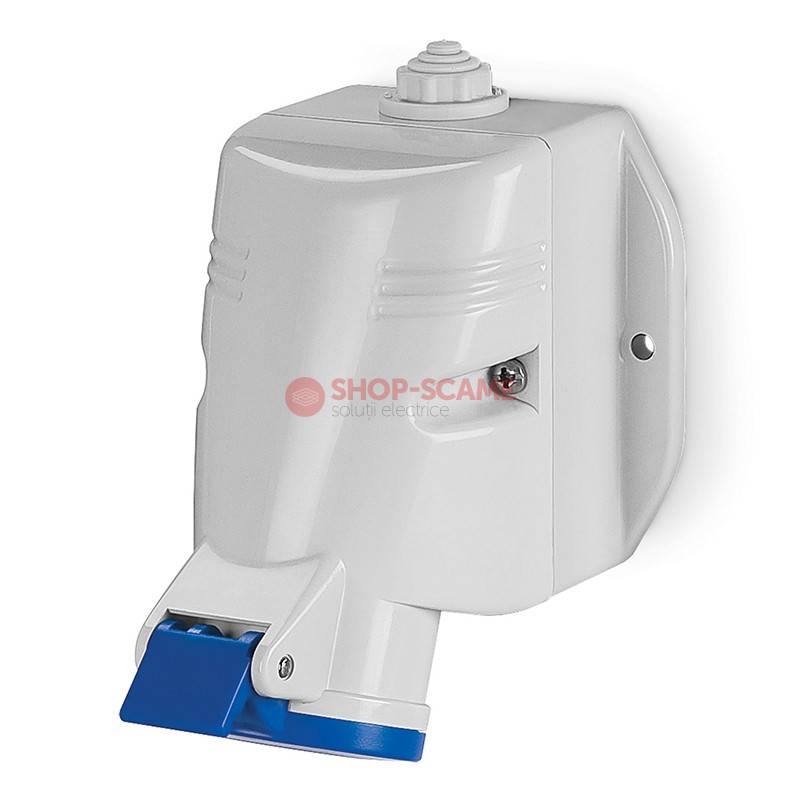

SURF.MNT.SOCKET 2P+E IP44 16A 6h SCAME 513.1653TH

Cod EAN: 8001636233246

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 48.71 Lei / 1

Pret cu TVA: 58.94 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.212KG Net Weight: 8001636233246 EAN code: 85366990 INTRASTAT code:

TechData
OPTIMA-TOP Series Commercial series: SURFACE MOUNTING SOCKET Synthetical description: 16A Rated current: 2P+E Poles: 6h Hour position: 200-250V Rated voltage: 50Hz Working frequency: 60Hz Working frequency: BLUE Colour: IP44/IP54 Protection degree: ANGLED Types of available outlets: Screw terminals Terminals: M20X1,5 Cable outlet:

Packaging
Carton Description: 40 Quantity: 8001636685496 EAN code: 10.28 KG Gross weight: 72450 CCM Volume: 375X560X345 (MM) Dimensions: Box Description: 10 Quantity: 8001636685489 EAN code: 2.57 KG Gross weight: 14857.92 CCM Volume: 268X308X180 (MM) Dimensions:

Note:

SAFE-IN
Connector tube protective shutter for increased safety against direct contacts. (The SAFE-IN safety device).

Threaded break-through knock out

Rubber threaded cable sleeve included

Sockets with "SAFE-IN" safety device

Approvals and Certifications

View certificate

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
	EN 60309-1/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations

Annexed
