Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

687.002

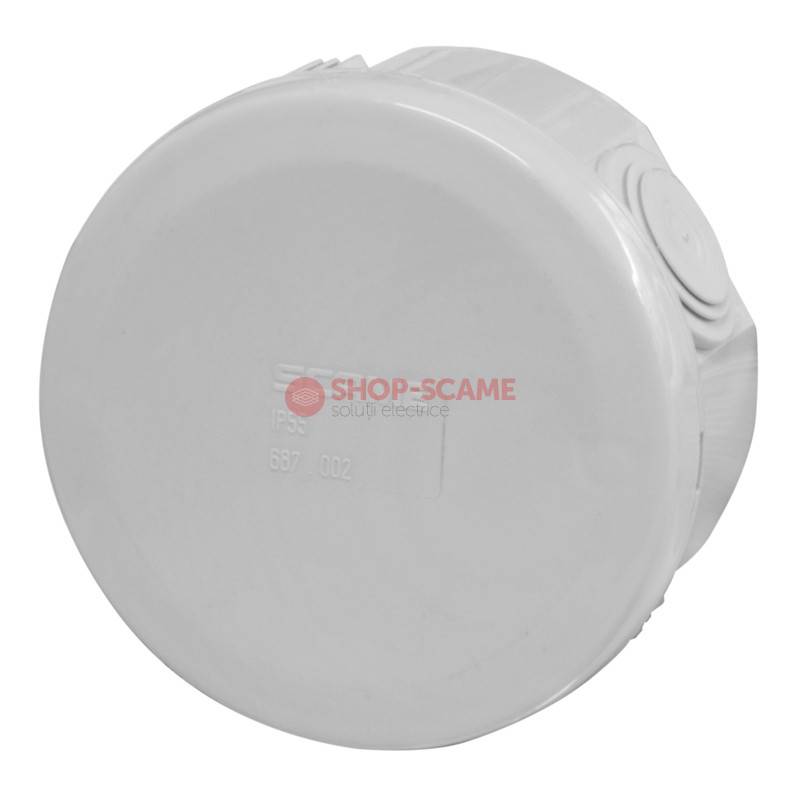

SURFACE MOUNTING JUNCTION BOX D.80 IP55 SCAME 687.002

Cod EAN: 8001636164854

Marca: Scame

Cantitate minima: 100

Pret fara TVA: 10.00 Lei / 1

Pret cu TVA: 12.10 Lei / 1

Inainte »»

Master data
100NR Minimum order: 0.052KG Net Weight: 8001636164854 EAN code: 85381000 INTRASTAT code:

TechData
CUBIK 650 Series Commercial series: JUNCTION BOX Synthetical description: IP55 Protection degree: GW 650°C GLOW WIRE: HALOGEN FREE Halogen free: GREY Colour: Ø80x40mm Dimensions: Ø23MM Cable outlet: 4xØ23mm Entries:

Packaging
Carton Description: 100 Quantity: 8001636604039 EAN code: 6 KG Gross weight: 54855 CCM Volume: 230X530X450 (MM) Dimensions: Bag Description: 4 Quantity: 8001636604022 EAN code: 0.24 KG Gross weight: 0 Volume: 0X0X0 () Dimensions:

Approvals and Certifications

I.M.Q.

Standards and Laws

	EN 60670-22 (2006) View certificate
[European Standard] Boxes and enclosures for electrical accessories for household and similar fixed electrical installations -- Part 22: Particular requirements for connecting boxes and enclosures
	EN 60670-1 (2005) View certificate
[European Standard] Boxes and enclosures for electrical accessories for household and similar fixed electrical installations. General requirements

Annexed
