673.4124B

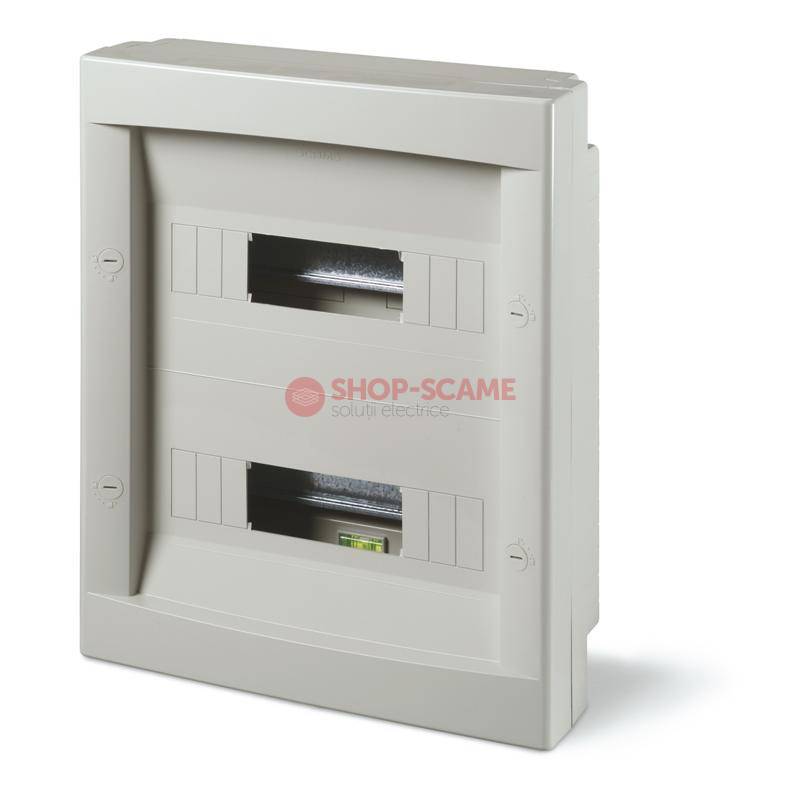

SURFACE MOUNTING CONSUMER UNIT 24 DIN MO SCAME 673.4124B

Cod EAN: 8001636077857

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 121.32 Lei / 1

Pret cu TVA: 146.80 Lei / 1

Inainte »»

Master data
1NR Minimum order: 1.355KG Net Weight: 8001636077857 EAN code: 85381000 INTRASTAT code:

TechData
DOMINO IP40 Series [surface] Commercial series: CONSUMER UNIT Synthetical description: WHITE Colour: SURFACE MOUNTING Mounting version: IP40 Protection degree: 24 DIN Modularity: 24+4 MOD. No. modules: 400x326x108mm Dimensions: 41W Dissipable power: (87W*) Dissipable power:

Packaging
Carton Description: 5 Quantity: 8001636878249 EAN code: 7.95 KG Gross weight: 80613.75 CCM Volume: 350X555X415 (MM) Dimensions: Bag Description: 1 Quantity: 8001636878256 EAN code: 1.59 KG Gross weight: 0 Volume: 0X0X0 () Dimensions:

Note:

Power dissipation calculated in conformity with CEI 23-49 italian standards

(*) Power dissipation calculated when 2 consumer units are on top of each other joined by specially designed accessories.

DOMINO IP40 Series
Modularity

Approvals and Certifications

I.M.Q.

Standards and Laws

	CEI 23-48 (1995) View certificate
[Italian Standard] Involucri per apparecchi per installazioni fisse per uso domestico e similare. Parte 1: Prescrizioni generali.
	CEI 23-49 (1996) View certificate
[Italian Standard] Involucri per apparecchi per installazioni fisse per uso domestico e similare.

Annexed
