» Fise si prize industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

570.0132.32

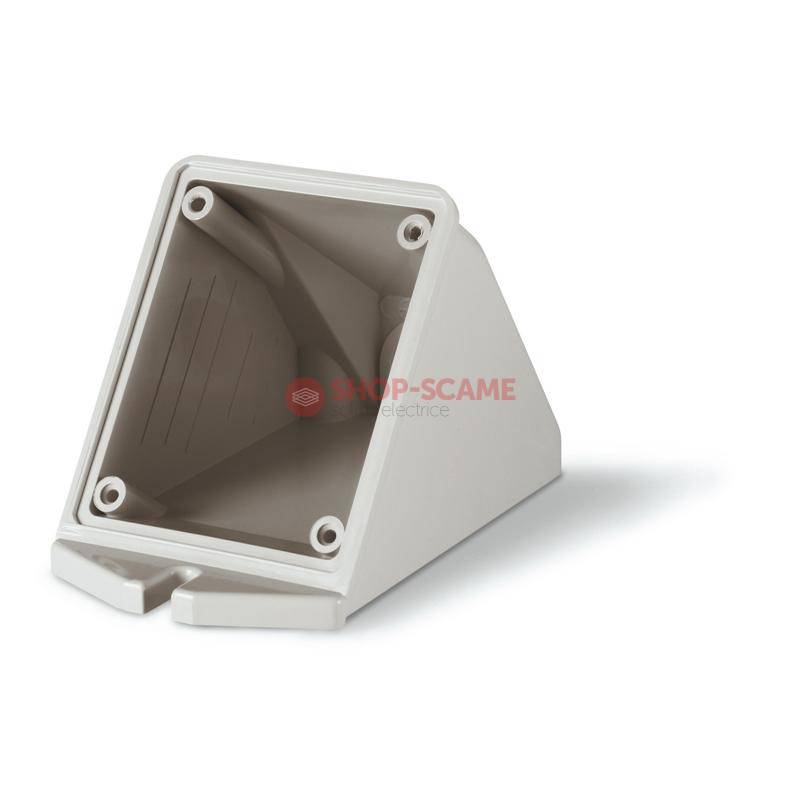

SURFACE MOUNTING BOX 32A IP67 ANGLED M32 SCAME 570.0132.32

Cod EAN: 8001636312743

Marca: Scame

Cantitate minima: 10

Pret fara TVA: 27.46 Lei / 1

Pret cu TVA: 33.23 Lei / 1

Master data
10NR Minimum order: 0.085KG Net Weight: 8001636312743 EAN code: 85369095 INTRASTAT code:

TechData
DOMO Series Commercial series: SURFACE MOUNTING BOX Synthetical description: ANGLED Types of available outlets: IP66/IP67/IP69 Protection degree: M32X1,5 Cable outlet: 32A Rated current: 84x106mm Suitable for: GREY Colour:

Packaging
Box Description: 10 Quantity: 8001636753188 EAN code: 0.99 KG Gross weight: 9680 CCM Volume: 220X275X160 (MM) Dimensions:

Note:

Supplied with socket fastening screws.

Open threaded cable entry

Threaded cap/cable sleeve included

Suitable for the sealing caps

Approvals and Certifications

View certificate

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-1/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-1/A2 (2012) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements

Annexed
