Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

457.32664

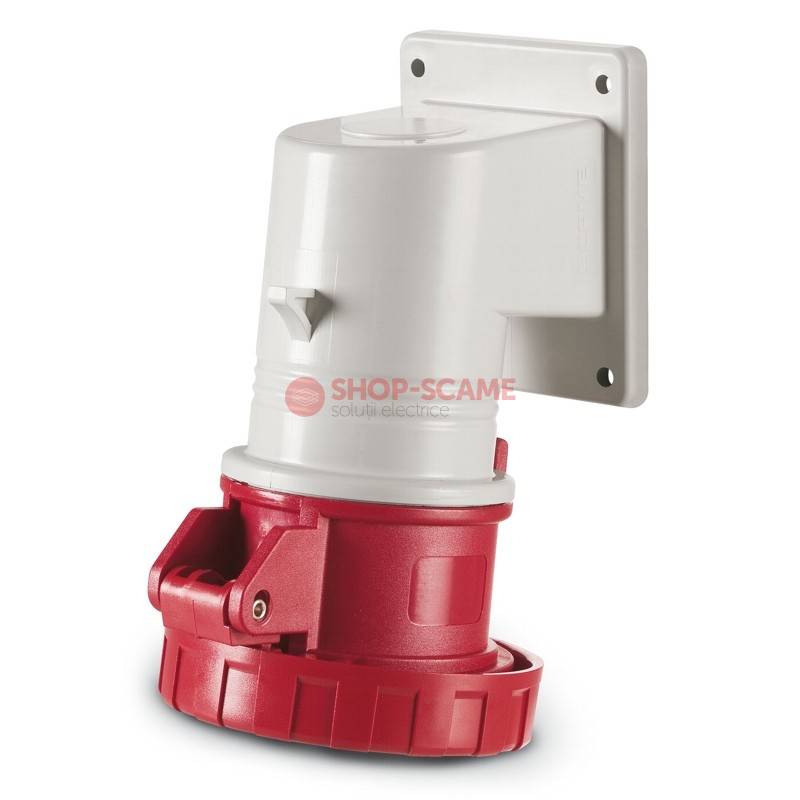

SOCKET OUTLET 3P+E IP67 32A 3h 380V 440V SCAME 457.32664

Cod EAN: 8001636289748

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 111.60 Lei / 1

Pret cu TVA: 135.04 Lei / 1

Inainte »»

Master data
10NR Minimum order: 0.327KG Net Weight: 8001636289748 EAN code: 85366990 INTRASTAT code:

TechData
EUREKA Series Commercial series: SOCKET OUTLET Synthetical description: 32A Rated current: 3P+E Poles: 3h Hour position: 380V 50Hz / 440V 60Hz Rated voltage: 50Hz Working frequency: 60Hz Working frequency: RED Colour: IP66/IP67 Protection degree: 90° ANGLED Types of available outlets: Screw terminals Terminals: 70X87MM Flange: PG 16 Cable outlet:

Packaging
Box Description: 10 Quantity: 8001636739670 EAN code: 3.75 KG Gross weight: 15318.435 CCM Volume: 263X353X165 (MM) Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
	EN 60309-1/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations

Annexed
