» Fise si prize industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

413.6361

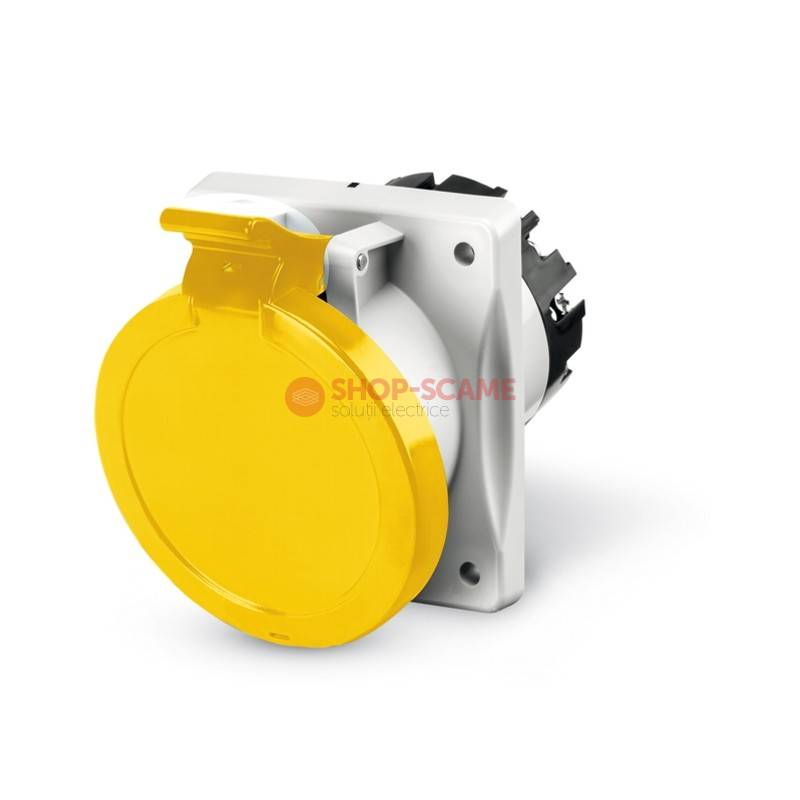

SOCKET OUTLET 3P+E IP44 63A 4h 100-130V SCAME 413.6361

Cod EAN: 8001636331218

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 143.47 Lei / 1

Pret cu TVA: 173.60 Lei / 1

«« Inapoi

Inainte »»

Master data
6NR Minimum order: 0.457KG Net Weight: 8001636331218 EAN code: 85366990 INTRASTAT code:

TechData
OPTIMA Series Commercial series: FLUSH-MOUNTING SOCKET Synthetical description: 63A Rated current: 3P+E Poles: 4h Hour position: 100-130V Rated voltage: 50Hz Working frequency: 60Hz Working frequency: YELLOW Colour: IP44/IP54 Protection degree: ANGLED Types of available outlets: Mantle terminals Terminals: 100X110MM Flange:

Packaging
Carton Description: 30 Quantity: 8001636763873 EAN code: 15.66 KG Gross weight: 77123.75 CCM Volume: 355X550X395 (MM) Dimensions: Box Description: 6 Quantity: 8001636763866 EAN code: 3.132 KG Gross weight: 10120.855 CCM Volume: 223X313X145 (MM) Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
	EN 60309-1/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
	EN 60309-1/A2 (2012) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2/A2 (2012) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations

Annexed
