» Fise si prize industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

452.3261

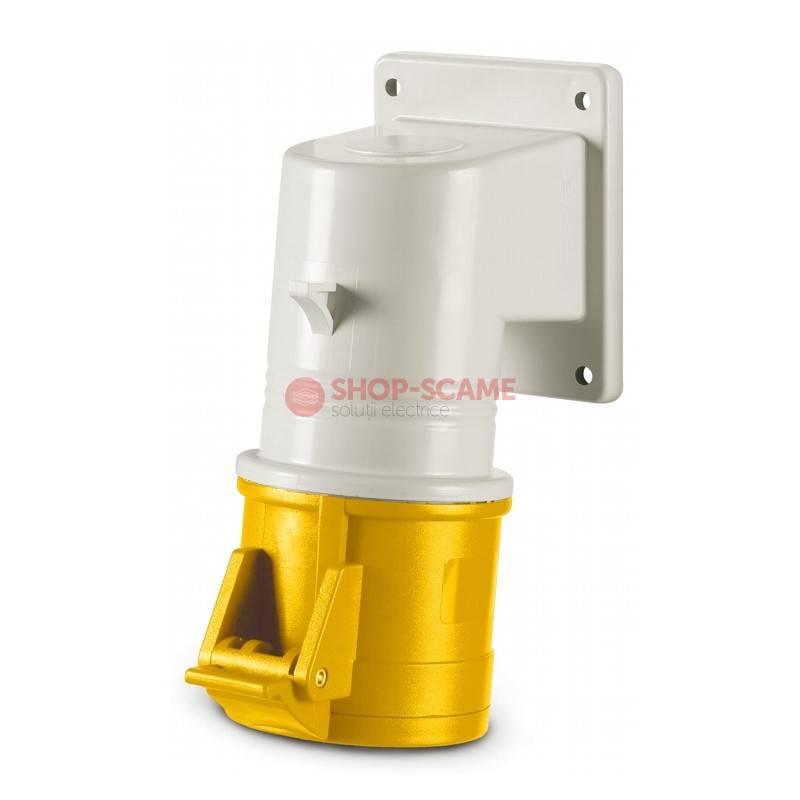

SOCKET OUTLET 3P+E IP44 32A 4h 100-130V SCAME 452.3261

Cod EAN: 8001636096605

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 102.13 Lei / 1

Pret cu TVA: 123.58 Lei / 1

«« Inapoi

Master data
10NR Minimum order: 0.268KG Net Weight: 8001636096605 EAN code: 85366990 INTRASTAT code:

TechData
EUREKA Series Commercial series: SOCKET OUTLET Synthetical description: 32A Rated current: 3P+E Poles: 4h Hour position: 100-130V Rated voltage: 50Hz Working frequency: 60Hz Working frequency: YELLOW Colour: IP44 Protection degree: 90° ANGLED Types of available outlets: Screw terminals Terminals: 70X87MM Flange: PG 16 Cable outlet:

Packaging
Carton Description: 40 Quantity: 8001636524634 EAN code: 12.68 KG Gross weight: 77123.75 CCM Volume: 355X550X395 (MM) Dimensions: Box Description: 10 Quantity: 8001636513362 EAN code: 3.17 KG Gross weight: 14857.92 CCM Volume: 268X308X180 (MM) Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
	EN 60309-1/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations

Annexed
