» Fise si prize industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

527.3253

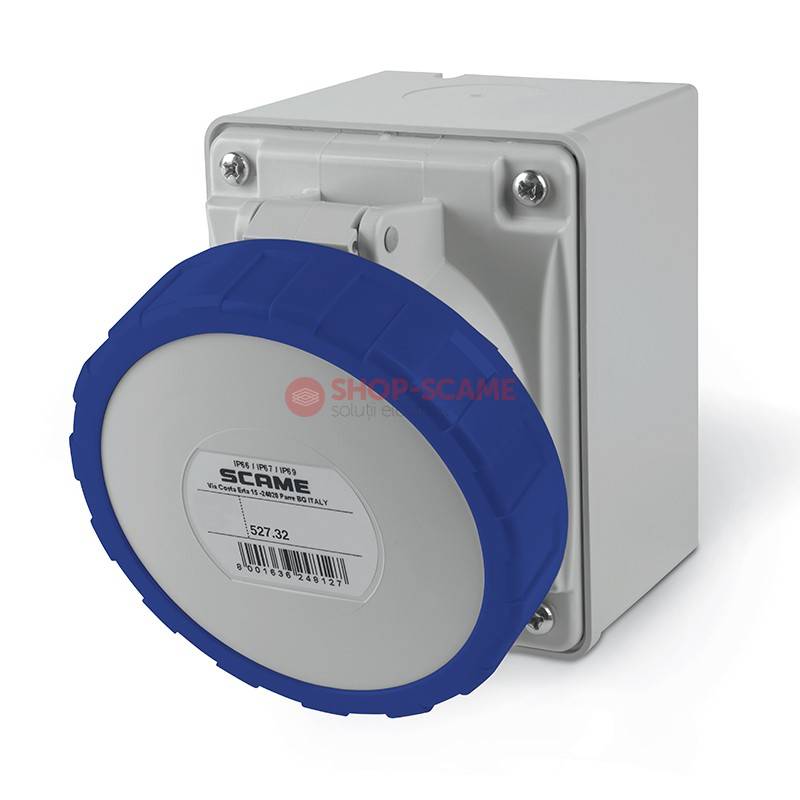

SOCKET OUTLET 2P+E IP67 32A 6h 200-250V SCAME 527.3253

Cod EAN: 8001636073491

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 114.69 Lei / 1

Pret cu TVA: 138.77 Lei / 1

«« Inapoi

Master data
10NR Minimum order: 0.368KG Net Weight: 8001636073491 EAN code: 85366990 INTRASTAT code:

TechData
OPTIMA Series Commercial series: SURFACE MOUNTING SOCKET Synthetical description: 32A Rated current: 2P+E Poles: 6h Hour position: 200-250V Rated voltage: 50Hz Working frequency: 60Hz Working frequency: BLUE Colour: IP66/IP67/IP69 Protection degree: STRAIGHT Types of available outlets: Screw terminals Terminals: DRILLING POINT MARK Cable outlet:

Packaging
Carton Description: 40 Quantity: 8001636885810 EAN code: 16.92 KG Gross weight: 109200 CCM Volume: 390X560X500 (MM) Dimensions: Box Description: 10 Quantity: 8001636885827 EAN code: 4.23 KG Gross weight: 22015.798 CCM Volume: 268X343X239.5 (MM) Dimensions:

Note:

Blank side with drilling point mark

Approvals and Certifications

I.M.Q. - ENEC 03

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
