» Fise si prize industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

513.63534T

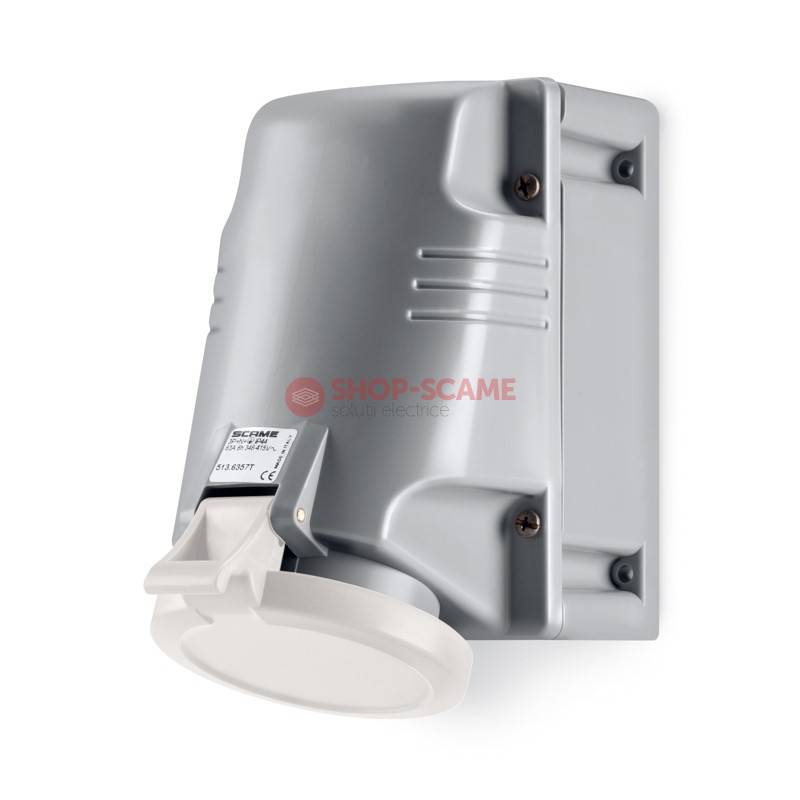

SOCKET IP44 SCAME 513.63534T

Cod EAN: 8001636337241

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 307.43 Lei / 1

Pret cu TVA: 371.99 Lei / 1

«« Inapoi

Inainte »»

Master data
4NR Minimum order: 0KG Net Weight: 8001636337241 EAN code: 85366990 INTRASTAT code:

TechData
OPTIMA-TOP Series Commercial series: SURFACE MOUNTING SOCKET Synthetical description: 63A Rated current: 2P+E Poles: 3h Hour position: >50-250V Rated voltage: DC Working frequency: GREY Colour: IP44 Protection degree: ANGLED Types of available outlets: Mantle terminals Terminals: M40X1,5 Cable outlet:

Packaging
Carton Description: 4 Quantity: 8001636765495 EAN code: 0 KG Gross weight: 28800 CCM Volume: 300X400X240 (MM) Dimensions:

Note:

Open threaded cable entry

Cable gland included

Threaded cap/cable sleeve included

Approvals and Certifications

View certificate

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
	EN 60309-1/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
	EN 60309-1/A2 (2012) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2/A2 (2012) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations

Annexed
