SCM460P5W

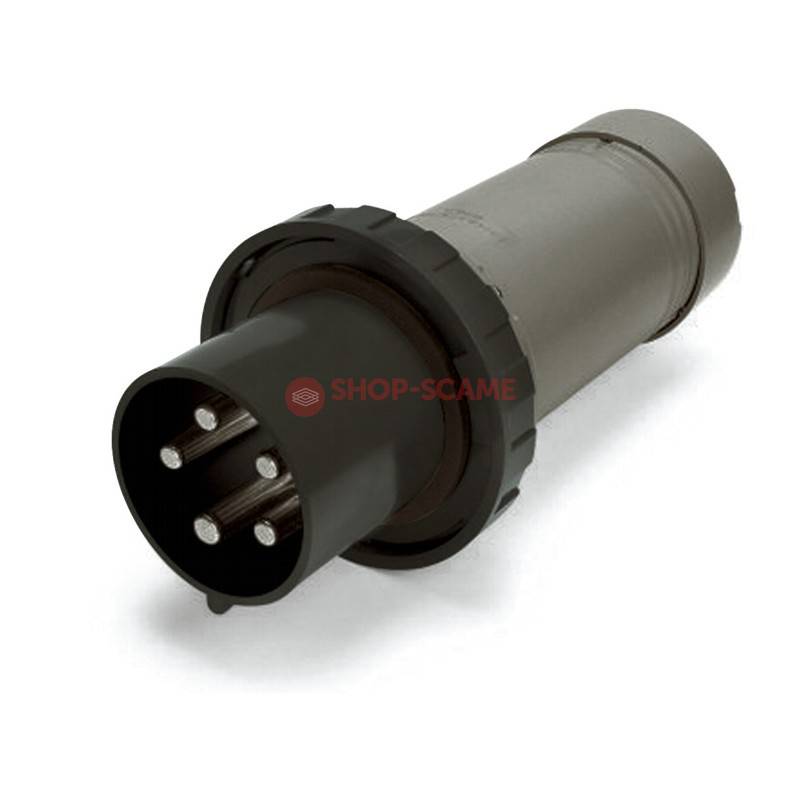

SCM460P5W PLUG 60A 3P 4W IP67 5h SCAME SCM460P5W

Cod EAN: 8001636218069

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 390.06 Lei / 1

Pret cu TVA: 471.97 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.732KG Net Weight: 8001636218069 EAN code: 85366990 INTRASTAT code:

TechData
EUREKA[PIN&SLEEVE] Series Commercial series: PLUG Synthetical description: 60A Rated current: 3P 4W Poles: 5h Hour position: 3Ø600V Rated voltage: BLACK Colour: IP67 Protection degree: STRAIGHT Types of available outlets: CABLE GLAND Cable outlet:

Packaging
Box Description: 1 Quantity: EAN code: 0.926 KG Gross weight: 4032 CCM Volume: 120X280X120 (MM) Dimensions:

Note:

UL listed

Approvals and Certifications

UL CLASSIFIED (USA)

Standards and Laws

	IEC 60309-1 (1999) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	IEC 60309-2 (1999) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part: 2: Dimensional interchangeability requirements for pin and contact-tube accessories

Annexed
