SCM432C3W

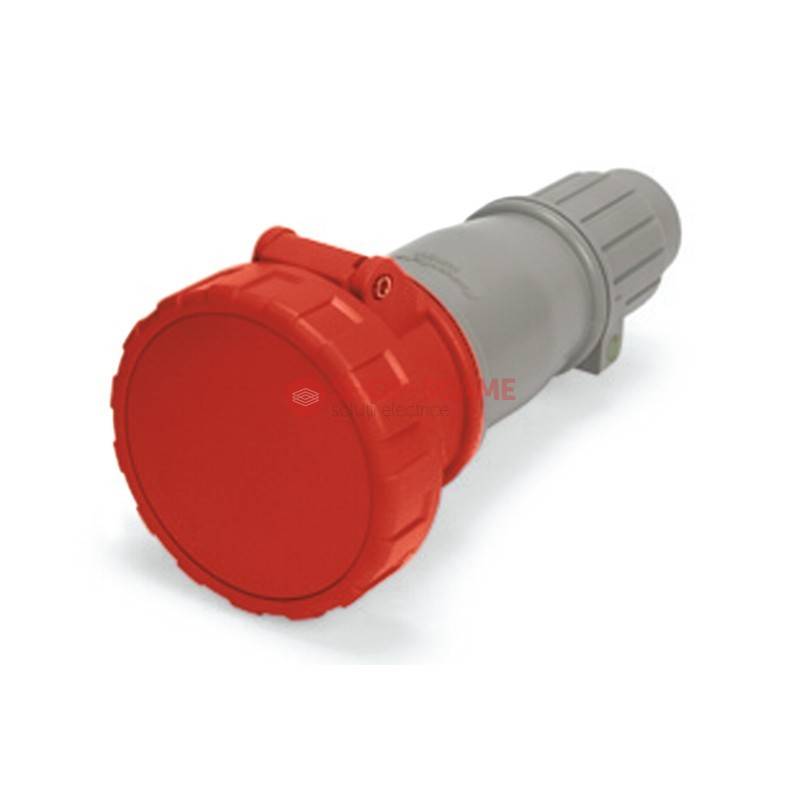

SCM432C3W CONNECTOR 32A 3P 4W IP67 3h SCAME SCM432C3W

Cod EAN: 8001636270593

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 303.20 Lei / 1

Pret cu TVA: 366.87 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.389KG Net Weight: 8001636270593 EAN code: 85366990 INTRASTAT code:

TechData
EUREKA[PIN&SLEEVE] Series Commercial series: CONNECTOR Synthetical description: 32A Rated current: 3P 4W Poles: 3h Hour position: 380V 50Hz / 440V 60Hz Rated voltage: 50/60Hz Working frequency: RED Colour: IP67 Protection degree: STRAIGHT Types of available outlets: CABLE GLAND Cable outlet:

Packaging
Carton Description: 5 Quantity: 8001636719795 EAN code: 3.08 KG Gross weight: 29640 CCM Volume: 390X475X160 (MM) Dimensions: Box Description: 1 Quantity: EAN code: 0.616 KG Gross weight: 4032 CCM Volume: 120X280X120 (MM) Dimensions:

Note:

UL classified

Approvals and Certifications

View certificate

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
	EN 60309-1/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
