SCM432B6S

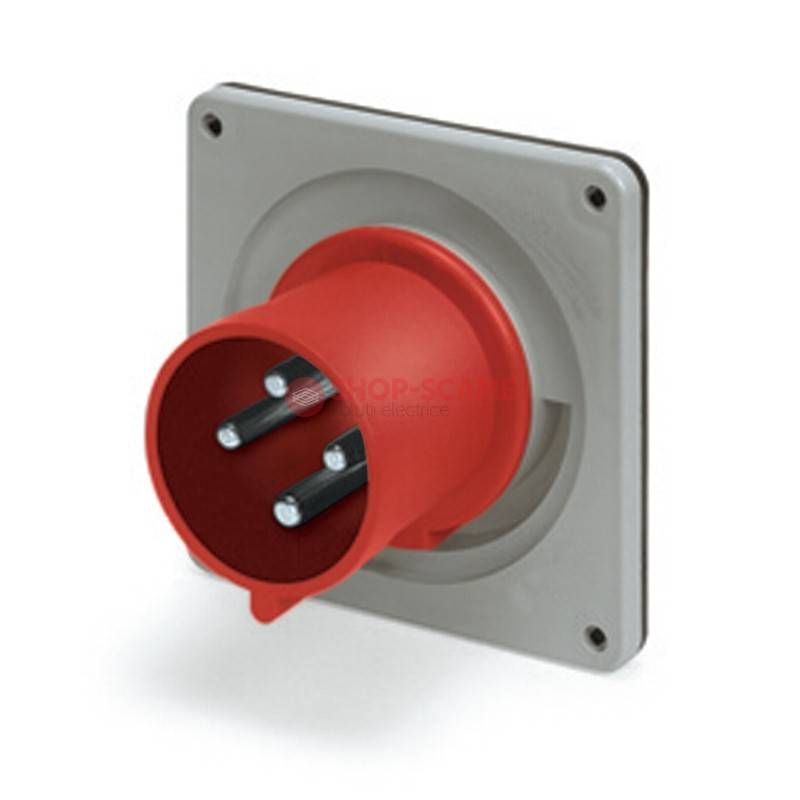

SCM432B6S INLET 32A 3P 4W IP44 6h SCAME SCM432B6S

Cod EAN: 8001636203850

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 229.95 Lei / 1

Pret cu TVA: 278.24 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.261KG Net Weight: 8001636203850 EAN code: 85366990 INTRASTAT code:

TechData
EUREKA[PIN&SLEEVE] Series Commercial series: FLUSH MOUNTING APPLIANCE INLET Synthetical description: 32A Rated current: 3P 4W Poles: 6h Hour position: 380-415V Rated voltage: 50/60Hz Working frequency: RED Colour: IP44 Protection degree: 90° ANGLED Types of available outlets: 120X120MM Flange:

Packaging
Carton Description: 5 Quantity: 8001636658667 EAN code: 1.92 KG Gross weight: 14822.625 CCM Volume: 235X435X145 (MM) Dimensions: Box Description: 1 Quantity: EAN code: 0.384 KG Gross weight: 0 Volume: 0X0X0 () Dimensions:

Note:

UL classified

Approvals and Certifications

View certificate

Standards and Laws

	IEC 60309-1 (1999) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	IEC 60309-2 (1999) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part: 2: Dimensional interchangeability requirements for pin and contact-tube accessories
