SCM430P5S

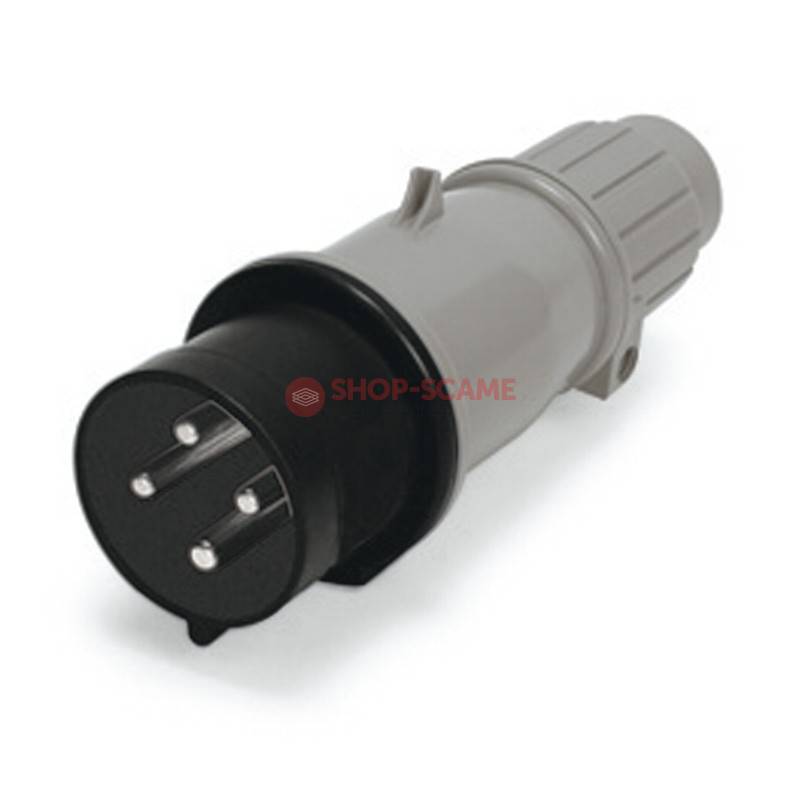

SCM430P5S PLUG 30A 3P 4W IP44 5h SCAME SCM430P5S

Cod EAN: 8001636218007

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 222.37 Lei / 1

Pret cu TVA: 269.07 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.305KG Net Weight: 8001636218007 EAN code: 85366990 INTRASTAT code:

TechData
EUREKA[PIN&SLEEVE] Series Commercial series: PLUG Synthetical description: 30A Rated current: 3P 4W Poles: 5h Hour position: 3Ø600V Rated voltage: BLACK Colour: IP44 Protection degree: STRAIGHT Types of available outlets: CABLE SLEEVE Cable outlet:

Packaging
Carton Description: 5 Quantity: 8001636667362 EAN code: 2.355 KG Gross weight: 21238 CCM Volume: 370X410X140 (MM) Dimensions: Box Description: 1 Quantity: EAN code: 0.471 KG Gross weight: 2150 CCM Volume: 100X215X100 (MM) Dimensions:

Note:

UL listed

Approvals and Certifications

UL CLASSIFIED (USA)

Standards and Laws

	IEC 60309-1 (1999) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	IEC 60309-2 (1999) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part: 2: Dimensional interchangeability requirements for pin and contact-tube accessories

Annexed
