» Prize si fise industriale heavy duty

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

SCM360MI6W

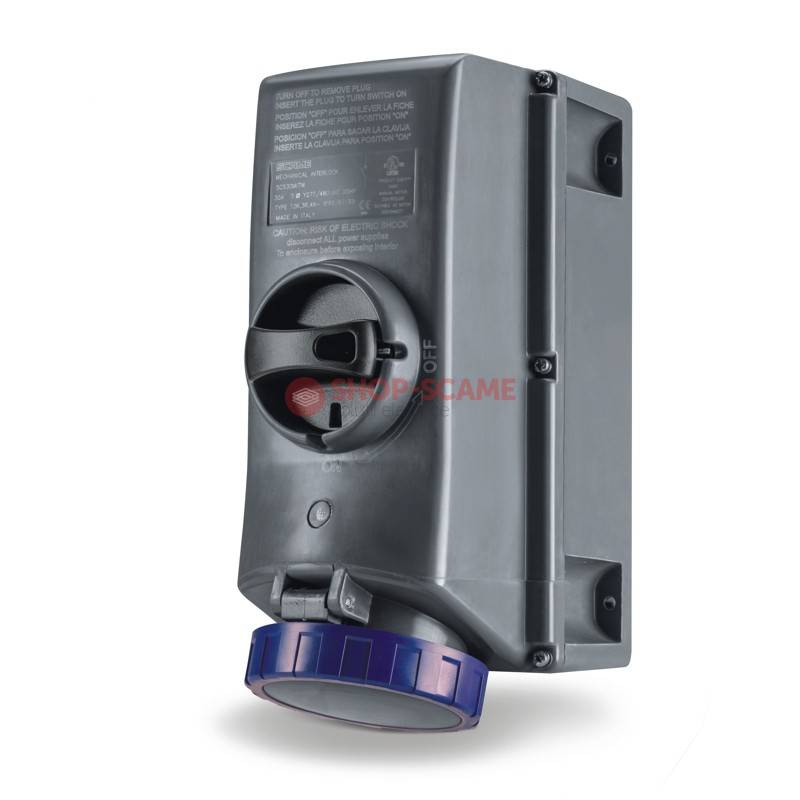

SCM360MI6W MEC. INT. 60A 2P 3W 6h SCAME SCM360MI6W

Cod EAN: 8001636318172

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 3045.10 Lei / 1

Pret cu TVA: 3684.57 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0KG Net Weight: 8001636318172 EAN code: 85366990 INTRASTAT code:

TechData
ADVANCE-GRP[PIN&SLEEVE] Series Commercial series: INTERLOCKED SOCKET Synthetical description: 60A Rated current: 2P 3W Poles: 6h Hour position: 250V Rated voltage: BLUE Colour: IP66/IP67/IP69 Protection degree:

Packaging
Carton Description: 1 Quantity: EAN code: 0 KG Gross weight: 0 Volume: 0X0X0 () Dimensions:

Note:

UL listed

With power indicating led

Already supplied with simple single bottom

Approvals and Certifications

View certificate

Standards and Laws

	UL 508 View certificate
[American Standard] Industrial Control Equipment
	IEC 60309-1 (2012) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. - Part 1: General requirements
	IEC 60309-2 (2012) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. - Part: 2: Dimensional interchangeability requirements for pin and contact-tube accessories
	IEC 60309-4 (2012) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 4: Switched socket-outlets and connectors with or without interlock
	UL 60947-1 View certificate
[American Standard] Low-Voltage Switchgear and Controlgear - Part 1: General rules
	UL 60947-4-1 View certificate
[American Standard] Low-Voltage Switchgear and Controlgear - Part 4-1: Contactors and Motor-Starters - Electromechanical Contactors and Motor-Starters
	CSA C22.2 No. 60947-1-13 View certificate
[Canadian Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	CSA C22.2 No. 60947-4-1-14 View certificate
[Canadian Standard] Low-voltage switchgear and controlgear - Part 4-1: Contactors and motor-starters - Electromechanical contactors and motor-starters

Annexed
