SCM332R4S

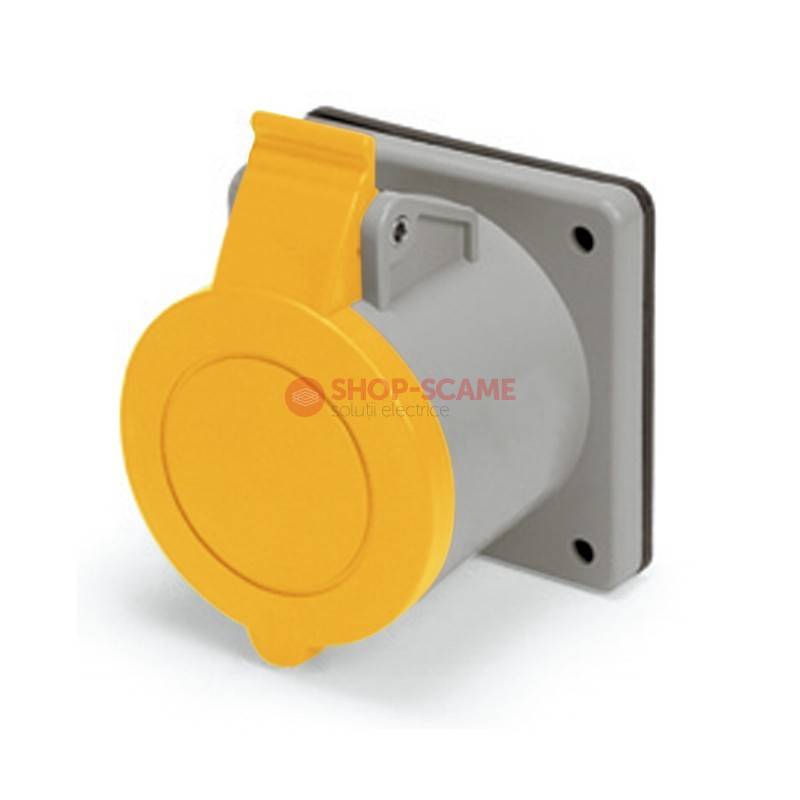

SCM332R4S RECEPTACLE 32A 2P 3W IP44 4h SCAME SCM332R4S

Cod EAN: 8001636309064

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 197.46 Lei / 1

Pret cu TVA: 238.93 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.222KG Net Weight: 8001636309064 EAN code: 85366990 INTRASTAT code:

TechData
EUREKA[PIN&SLEEVE] Series Commercial series: RECEPTACLE Synthetical description: 32A Rated current: 2P 3W Poles: 4h Hour position: 100-130V Rated voltage: 50/60Hz Working frequency: YELLOW Colour: IP44 Protection degree: STRAIGHT Types of available outlets: 75X75MM Flange:

Packaging
Carton Description: 5 Quantity: 8001636751528 EAN code: 1.585 KG Gross weight: 11238.75 CCM Volume: 150X555X135 (MM) Dimensions: Box Description: 1 Quantity: EAN code: 0.317 KG Gross weight: 1250 CCM Volume: 100X100X125 (MM) Dimensions:

Note:

UL classified

Approvals and Certifications

View certificate

Standards and Laws

	IEC 60309-1 (1999) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	IEC 60309-2 (1999) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part: 2: Dimensional interchangeability requirements for pin and contact-tube accessories

Annexed
