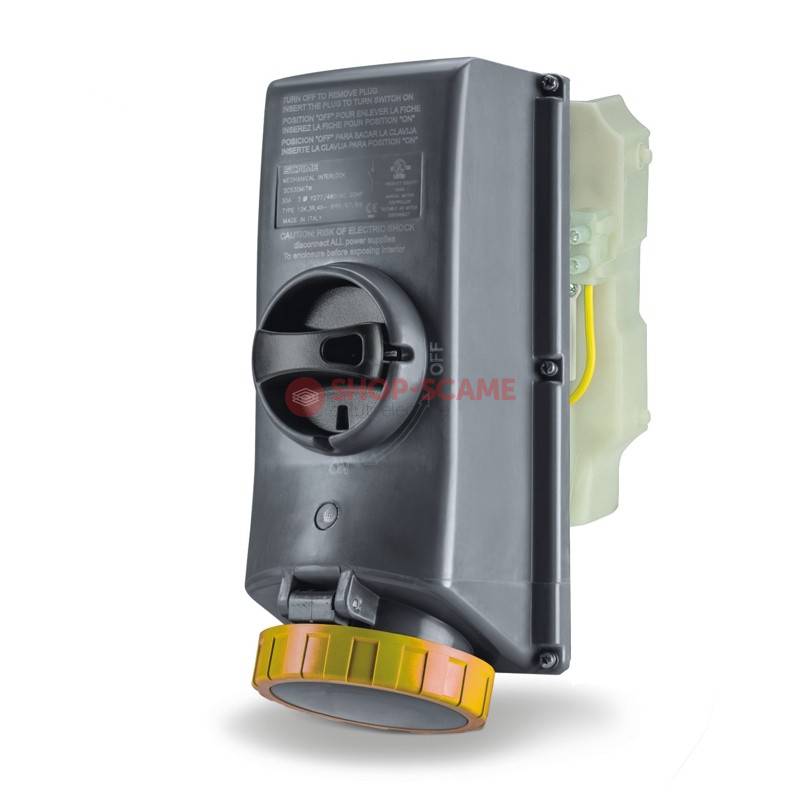

SCM320MI4W-NB

SCM320MI4W-NB MEC.INT. NB 20A 2P 3W 4h SCAME SCM320MI4W-NB

Cod EAN: 8001636318745

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 1136.94 Lei / 1

Pret cu TVA: 1375.70 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 1.784KG Net Weight: 8001636318745 EAN code: 85366990 INTRASTAT code:

TechData
ADVANCE-GRP[PIN&SLEEVE] Series Commercial series: INTERLOCKED SOCKET Synthetical description: 20A Rated current: 2P 3W Poles: 4h Hour position: 125V Rated voltage: YELLOW Colour: IP66/IP67/IP69 Protection degree:

Packaging
Carton Description: 6 Quantity: 8001636756035 EAN code: 12.666 KG Gross weight: 54816.125 CCM Volume: 305X455X395 (MM) Dimensions: Box Description: 1 Quantity: EAN code: 2.111 KG Gross weight: 7227.5 CCM Volume: 140X295X175 (MM) Dimensions:

Note:

UL listed

Empty base: ADVANCE-GRP System (fam. 579)

With power indicating led

To be matched with the respective bases

NORTH AMERICAN RATINGS
Products certified by UL laboratories according to standards UL1682 and UL1686

Approvals and Certifications

View certificate

Standards and Laws

	UL 508 View certificate
[American Standard] Industrial Control Equipment
	IEC 60309-1 (2012) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. - Part 1: General requirements
	IEC 60309-2 (2012) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. - Part: 2: Dimensional interchangeability requirements for pin and contact-tube accessories
	IEC 60309-4 (2012) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 4: Switched socket-outlets and connectors with or without interlock
	UL 60947-1 View certificate
[American Standard] Low-Voltage Switchgear and Controlgear - Part 1: General rules
	UL 60947-4-1 View certificate
[American Standard] Low-Voltage Switchgear and Controlgear - Part 4-1: Contactors and Motor-Starters - Electromechanical Contactors and Motor-Starters
	CSA C22.2 No. 60947-1-13 View certificate
[Canadian Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	CSA C22.2 No. 60947-4-1-14 View certificate
[Canadian Standard] Low-voltage switchgear and controlgear - Part 4-1: Contactors and motor-starters - Electromechanical contactors and motor-starters

Annexed
