» Prize si fise industriale heavy duty

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

SCM316P4S

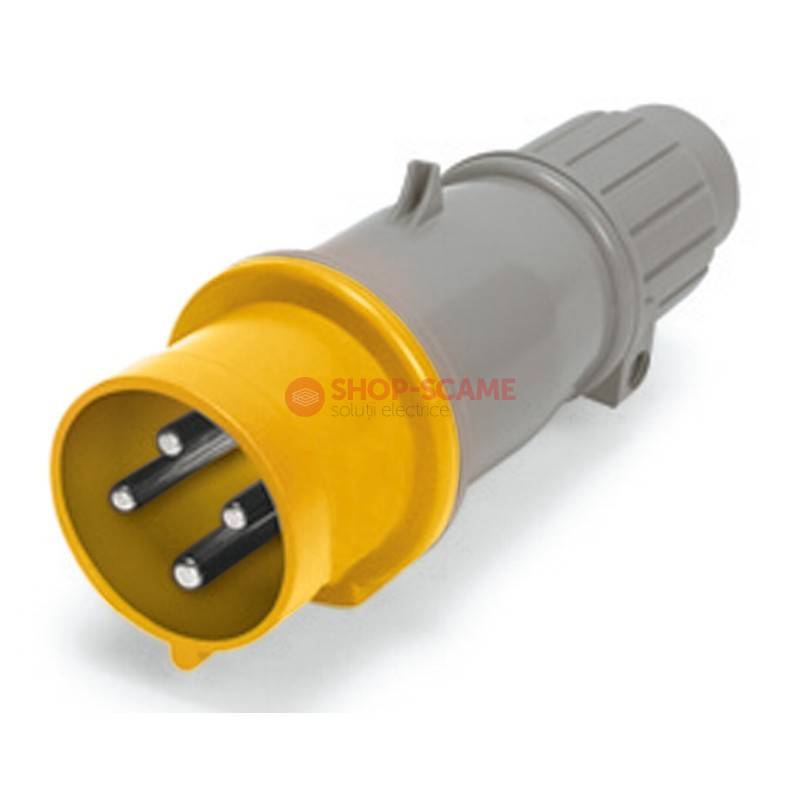

SCM316P4S PLUG 16A 2P 3W IP44 4h SCAME SCM316P4S

Cod EAN: 8001636187556

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 113.80 Lei / 1

Pret cu TVA: 137.70 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.157KG Net Weight: 8001636187556 EAN code: 85366990 INTRASTAT code:

TechData
EUREKA[PIN&SLEEVE] Series Commercial series: PLUG Synthetical description: 16A Rated current: 2P 3W Poles: 4h Hour position: 100-130V Rated voltage: 50/60Hz Working frequency: YELLOW Colour: IP44 Protection degree: STRAIGHT Types of available outlets: CABLE SLEEVE Cable outlet:

Packaging
Carton Description: 5 Quantity: 8001636642031 EAN code: 1.615 KG Gross weight: 21238 CCM Volume: 370X410X140 (MM) Dimensions: Box Description: 1 Quantity: 8001636642024 EAN code: 0.323 KG Gross weight: 2150 CCM Volume: 100X215X100 (MM) Dimensions:

Note:

UL classified

INTERNATIONAL RATINGS
Products certified by UL laboratories according to standards IEC60309-1 and IEC60309-2

Approvals and Certifications

UL CLASSIFIED (USA)

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations

Annexed
