SCM316C4S

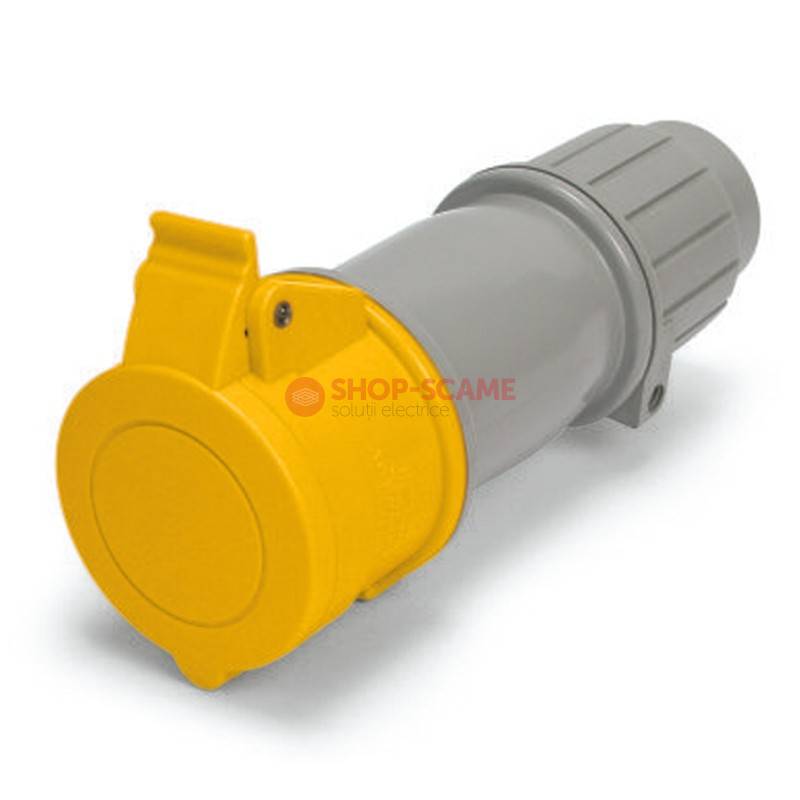

SCM316C4S CONNECTOR 16A 2P 3W IP44 4h SCAME SCM316C4S

Cod EAN: 8001636187587

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 137.97 Lei / 1

Pret cu TVA: 166.94 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 0.187KG Net Weight: 8001636187587 EAN code: 85366990 INTRASTAT code:

TechData
EUREKA[PIN&SLEEVE] Series Commercial series: CONNECTOR Synthetical description: 16A Rated current: 2P 3W Poles: 4h Hour position: 100-130V Rated voltage: 50/60Hz Working frequency: YELLOW Colour: IP44 Protection degree: STRAIGHT Types of available outlets: CABLE SLEEVE Cable outlet:

Packaging
Carton Description: 5 Quantity: 8001636642093 EAN code: 1.765 KG Gross weight: 21756 CCM Volume: 370X420X140 (MM) Dimensions: Box Description: 1 Quantity: 8001636642086 EAN code: 0.353 KG Gross weight: 2150 CCM Volume: 100X215X100 (MM) Dimensions:

Note:

UL classified

Approvals and Certifications

UL CLASSIFIED (USA)

Standards and Laws

	IEC 60309-2 (2012) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. - Part: 2: Dimensional interchangeability requirements for pin and contact-tube accessories
	IEC 60309-1 (2012) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. - Part 1: General requirements
