Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

686.211

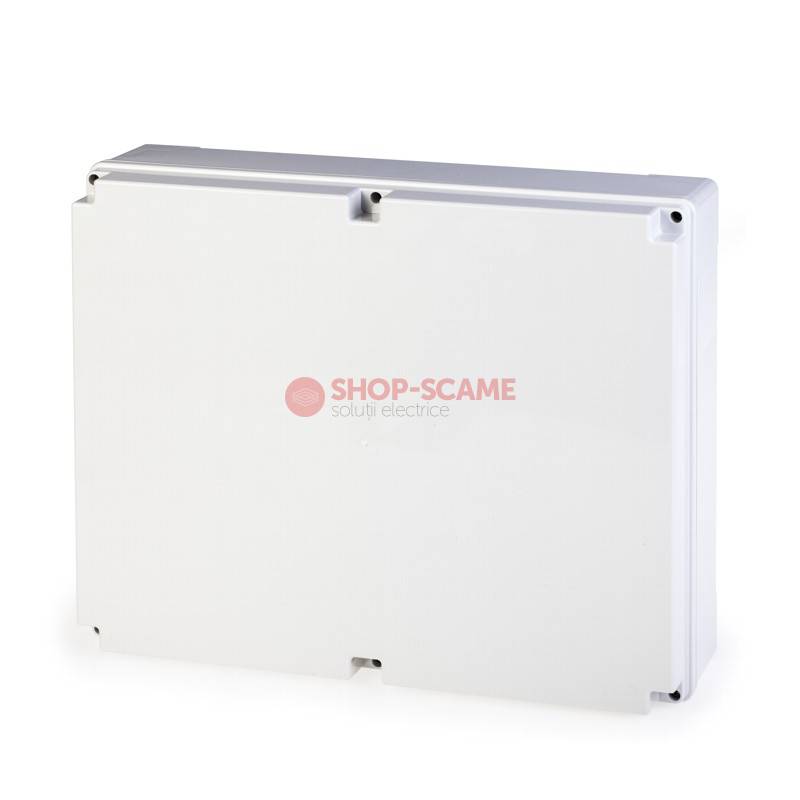

SCABOX JUNCTION BOX 460X380 IP56 SCAME 686.211

Cod EAN: 8001636182650

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 218.39 Lei / 1

Pret cu TVA: 264.25 Lei / 1

Inainte »»

Master data
1NR Minimum order: 2.11KG Net Weight: 8001636182650 EAN code: 85381000 INTRASTAT code:

TechData
SCABOX Series Commercial series: JUNCTION BOX Synthetical description: IP56 Protection degree: GW 650°C GLOW WIRE: GREY Colour: 460x380x130mm Dimensions: SMOOTH WALLS Cable outlet:

Packaging
Carton Description: 1 Quantity: 8001636633039 EAN code: 2.802 KG Gross weight: 29640 CCM Volume: 390X475X160 (MM) Dimensions:

Note:

It is possible to use the wall mounting brackets kit item 654.0023 (K2)

Suitable for the hinges mounting

Approvals and Certifications

I.M.Q.

Standards and Laws

	EN 60670-22 (2006) View certificate
[European Standard] Boxes and enclosures for electrical accessories for household and similar fixed electrical installations -- Part 22: Particular requirements for connecting boxes and enclosures
	EN 60670-1 (2005) View certificate
[European Standard] Boxes and enclosures for electrical accessories for household and similar fixed electrical installations. General requirements
