770.407

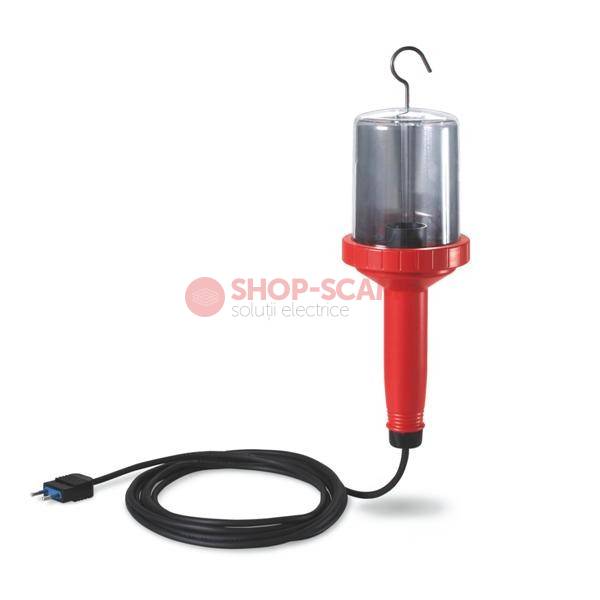

PORTABLE LAMP E27 IP20 WITH 5 MT. CABLE SCAME 770.407

Cod EAN: 8001636079363

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 179.31 Lei / 1

Pret cu TVA: 216.97 Lei / 1

Inainte »»

PORTABLE LAMP E27 IP20 WITH 5 MT. CABLE SCAME 770.407

Master data
1NR Minimum order: 0.793KG Net Weight: 8001636079363 EAN code: 94054099 INTRASTAT code:

TechData
HALE Series Commercial series: PORTABLE LAMP Synthetical description: IP20 Protection degree: 60W Lamp power: E27 Lamp holder: 2P-10A-(S10) Type of plugs: 250V Rated voltage: 5m Cable length: H05VV-F Cable: 2x1mm² Cable section:

Packaging
Carton Description: 6 Quantity: 8001636875965 EAN code: 5.454 KG Gross weight: 44332.75 CCM Volume: 385X490X235 (MM) Dimensions: Bag Description: 1 Quantity: 8001636875972 EAN code: 0.909 KG Gross weight: 0 Volume: 0X0X0 () Dimensions:

Note:

Cable H05RN-F (RUBBER)

Protective shell in collision-proof technopolymer

Screw cable stay.

Cable gland

For lamps up to 60W (incandescent)

Rocker switch and screw clamp for cable replacement.

Handgrip in non-hygroscopic technopolymer.

The degree of protection IP20 is due to preserve of plug for domestic use, while the apparatus is IP65; for example, if plugged into a socket in the garage the lamp can be used in the garden.

Lighting devices with protective shell

Reflecting parabola in aluminium.

Adjustable hook.

Approvals and Certifications

View certificate

Standards and Laws

	EN 60598-2-8 (1997) View certificate
[European Standard] Luminaires - Part 2: Particular requirements - Section 8: Handlamps
	EN 60598-1 (1997) View certificate
[European Standard] Luminaires. Part 1: General requirements and tests.

Annexed

	Instruction manual 215.14 KB
	Instruction manual 37.48 KB
	Technical drawing [DWG] 443.4 KB
	Technical drawing [PDF] 202.34 KB
	Technical drawing [STP] 194.34 KB
