670.6566-463

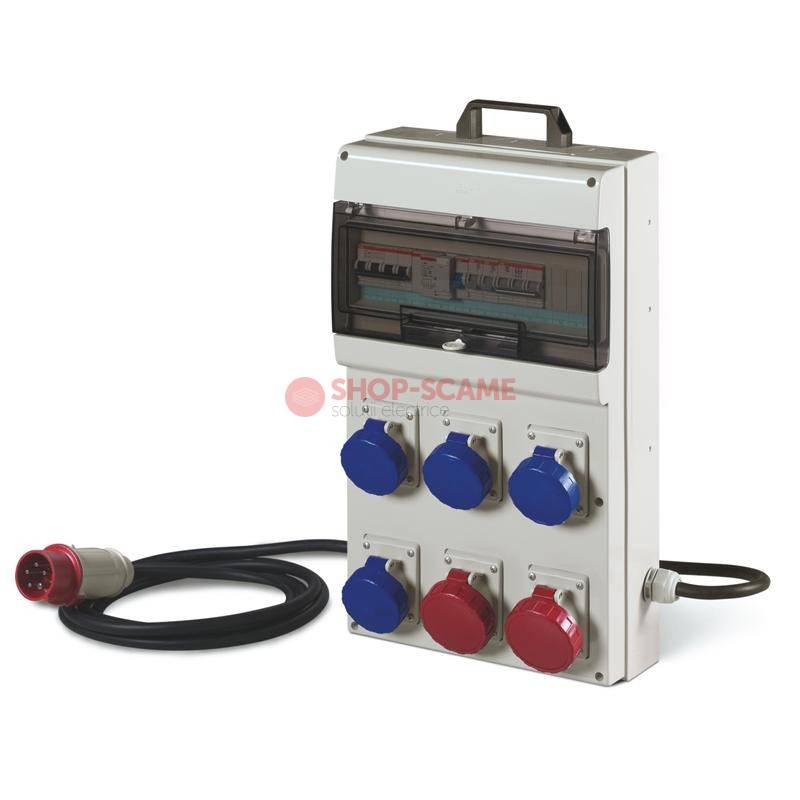

PORTABLE DISTRIBUTION ASSEMBLY DOMINO SCAME 670.6566-463

Cod EAN: 8001636100845

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 2688.28 Lei / 1

Pret cu TVA: 3252.82 Lei / 1

Inainte »»

Master data
1NR Minimum order: 7.337KG Net Weight: 8001636100845 EAN code: 85371098 INTRASTAT code:

TechData
DOMINO IP66 Series [assembly] Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP66 Protection degree: Plug Inlet supply unit: 6 No. of available outlets: 5 No. of sockets 2P+E 16A: 1 No. of sockets 3P+N+E 16A: RCD 4P 40A 0,03A In disp. ing/tipo apparecchio: 18 KW Max power: 3 No. MCB 1P 16A: 1 No. MCB 4P 16A:

Packaging
Carton Description: 1 Quantity: 8001636518701 EAN code: 8.334 KG Gross weight: 52338 CCM Volume: 440X610X195 (MM) Dimensions:

Note:

Plug IEC309 32A 3P+N+E

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 53.55 KB
